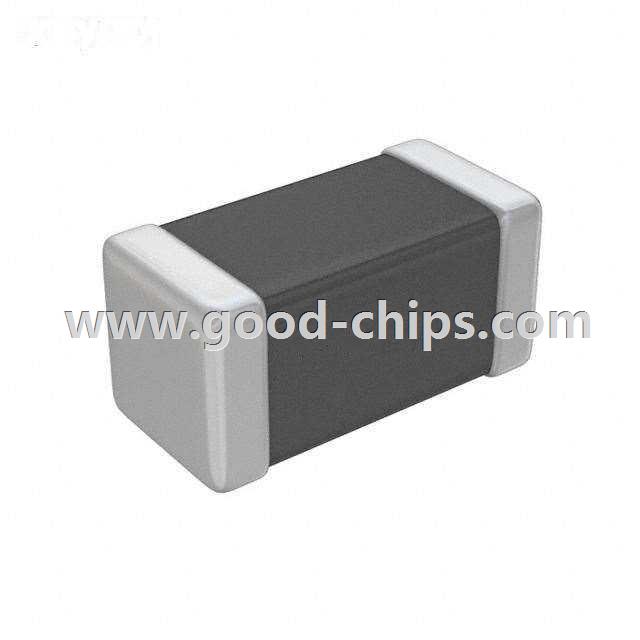

| Manufacturer Part Number: | MPZ0603S220CT000 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22 Ohm Impedance Ferrite Bead 0201 (0603 Metric) Surface Mount Power Line 1A 1 Lines 65 mOhm Max DCR -55°C ~ 125°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPZ0603S220CT000 Datasheet |
| Internal Part Number | 898-MPZ0603S220CT000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Part Number | MMZ,MPS Series Oct/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MPZ Series | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | TDK Corporation | |
| Series | MPZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 22 Ohm @ 100MHz | |
| Current Rating (Max) | 1A | |
| DC Resistance (DCR) (Max) | 65 mOhm | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Package / Case | 0201 (0603 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.013" (0.33mm) | |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
| Standard Package | 15,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPZ0603S220CT000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPZ0603S220CT000 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MPZ0603S220CT000 is new and unused, you can buy MPZ0603S220CT000 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPZ0603S220CT000.
