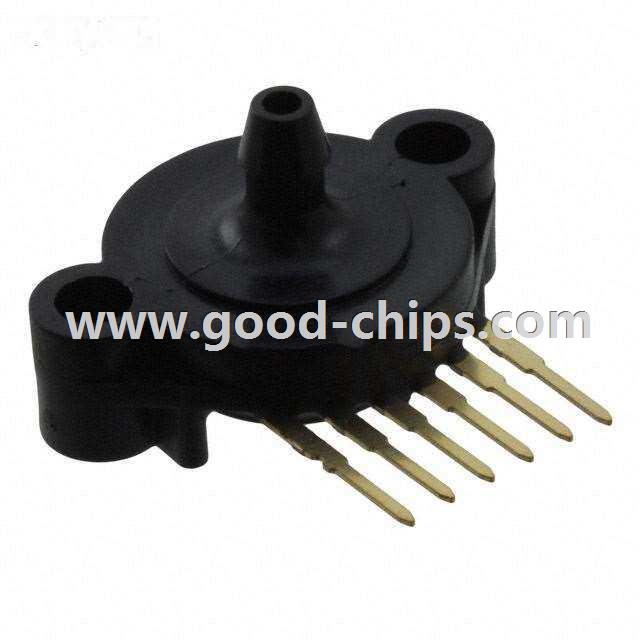

Manufacturer Part Number: | MPX5700ASX |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | Pressure Sensors, Transducers |
Available Quantity: | 9097 Pieces |
Unit Price: | Quote by Email |
Description: | Pressure Sensor 2.18 PSI ~ 101.53 PSI (15 kPa ~ 700 kPa) Absolute Male - 0.19" (4.93mm) Tube 0.2 V ~ 4.7 V 6-SIP Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPX5700ASX Datasheet |
Internal Part Number | 898-MPX5700ASX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MPX5700 Series | |
Category | Sensors, Transducers | |
Family | Pressure Sensors, Transducers | |
Manufacturer | Freescale Semiconductor - NXP | |
Series | MPX5700 | |
Part Status | Active | |
Pressure Type | Absolute | |
Operating Pressure | 2.18 PSI ~ 101.53 PSI (15 kPa ~ 700 kPa) | |
Output Type | Analog Voltage | |
Output | 0.2 V ~ 4.7 V | |
Accuracy | ±2.5% | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Port Size | Male - 0.19" (4.93mm) Tube | |
Port Style | Barbed | |
Features | Temperature Compensated | |
Termination Style | PCB | |
Maximum Pressure | 406.11 PSI (2800 kPa) | |
Operating Temperature | -40°C ~ 125°C | |
Package / Case | 6-SIP Module | |
Supplier Device Package | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPX5700ASX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPX5700ASX is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MPX5700ASX is new and unused, you can buy MPX5700ASX NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPX5700ASX.
