Manufacturer Part Number: | MPQ6002 |
---|---|
Manufacturer: | Central Semiconductor Corp |
Product Category: | Transistors - Bipolar (BJT) - Arrays |
Available Quantity: | 9364 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS 2NPN/2PNP 30V 0.5A |
Lead Free Status / RoHS Status: | Request inventory verification / Request inventory verification |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPQ6002 Datasheet |
Internal Part Number | 898-MPQ6002 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | NPN Transistor Arrays | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Arrays | |
Manufacturer | Central Semiconductor Corp | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Transistor Type | 2 NPN, 2 PNP | |
Current - Collector (Ic) (Max) | 500mA | |
Voltage - Collector Emitter Breakdown (Max) | 30V | |
Vce Saturation (Max) @ Ib, Ic | 1.4V @ 30mA, 300mA | |
Current - Collector Cutoff (Max) | 30nA (ICBO) | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 300mA, 10V | |
Power - Max | 650mW | |
Frequency - Transition | 200MHz | |
Mounting Type | Through Hole | |

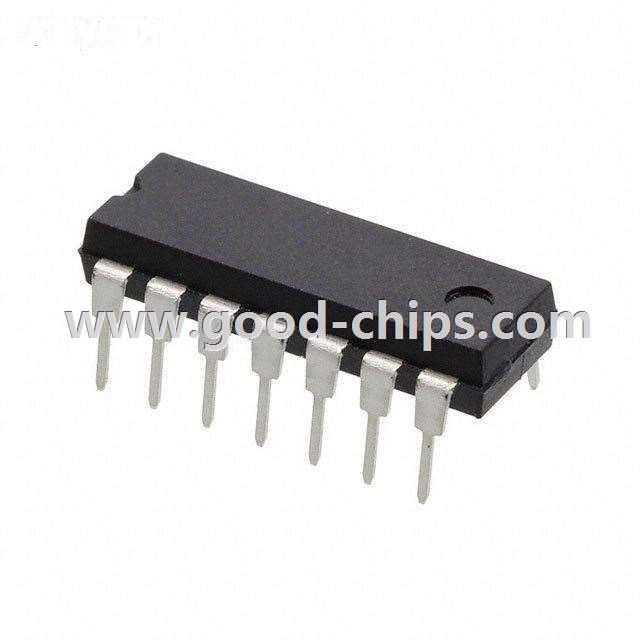

Package / Case | 14-DIP (0.300", 7.62mm) | |
Supplier Device Package | TO-116 | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPQ6002 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPQ6002 is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of MPQ6002 is new and unused, you can buy MPQ6002 Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPQ6002.
