| Manufacturer Part Number: | MPQ4420HGJ-AEC1-Z |
|---|---|
| Manufacturer: | Monolithic Power Systems Inc. |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A SOT-23-8 Thin, TSOT-23-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPQ4420HGJ-AEC1-Z Datasheet |
| Internal Part Number | 898-MPQ4420HGJ-AEC1-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Lead Free Policy | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Monolithic Power Systems Inc. | |
| Series | Automotive, AEC-Q100 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 32.4V | |
| Current - Output | 2A | |
| Frequency - Switching | 410kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

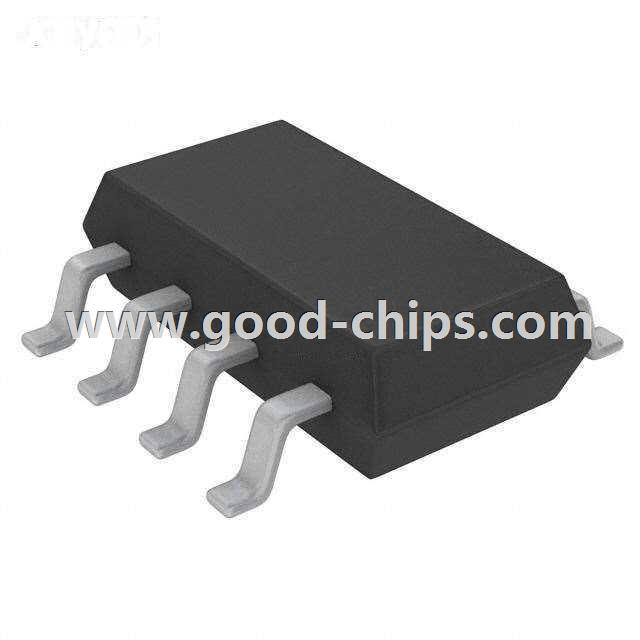

| Package / Case | SOT-23-8 Thin, TSOT-23-8 | |
| Supplier Device Package | TSOT-23-8 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPQ4420HGJ-AEC1-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPQ4420HGJ-AEC1-Z is in stock for immediate shipping now. We are the distributor of Monolithic Power Systems Inc. all series components. The condition of MPQ4420HGJ-AEC1-Z is new and unused, you can buy MPQ4420HGJ-AEC1-Z Monolithic Power Systems Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPQ4420HGJ-AEC1-Z.
