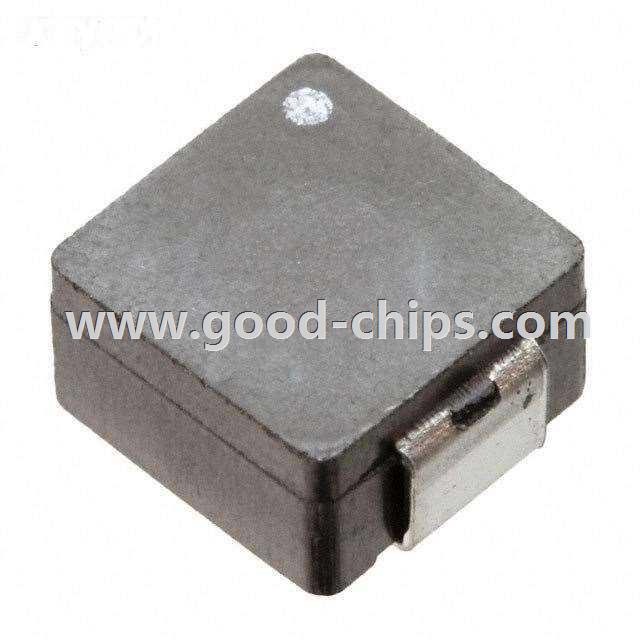

Manufacturer Part Number: | MPLCH0740L3R3 |
---|---|
Manufacturer: | Kemet |
Product Category: | Fixed Inductors |
Available Quantity: | 10010 Pieces |
Unit Price: | Quote by Email |
Description: | 3.3µH Unshielded Wirewound Inductor 7.8A 19 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPLCH0740L3R3 Datasheet |
Internal Part Number | 898-MPLCH0740L3R3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Metal Composite SMD Power Inductors | |
Online Catalog | MPLCH Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Kemet | |
Series | MPLCH | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | - | |
Inductance | 3.3µH | |
Tolerance | ±20% | |
Current Rating | 7.8A | |
Current - Saturation | 7A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 19 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -20°C ~ 120°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.307" L x 0.264" W (7.80mm x 6.70mm) | |
Height - Seated (Max) | 0.157" (4.00mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPLCH0740L3R3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPLCH0740L3R3 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPLCH0740L3R3 is new and unused, you can buy MPLCH0740L3R3 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPLCH0740L3R3.
