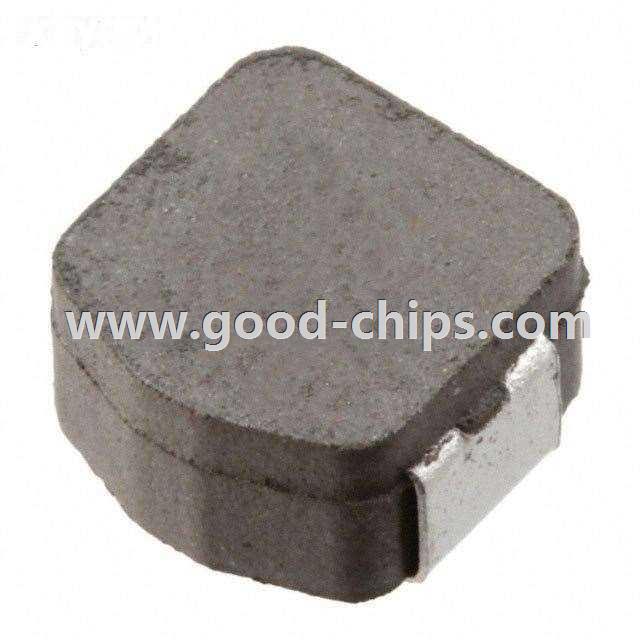

Manufacturer Part Number: | MPLCG0530L2R2 |
---|---|
Manufacturer: | Kemet |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2.2µH Unshielded Wirewound Inductor 4.5A 36.4 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPLCG0530L2R2 Datasheet |
Internal Part Number | 898-MPLCG0530L2R2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Metal Composite SMD Power Inductors | |
Featured Product | Metal-Composite Power Inductors | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Kemet | |
Series | MPLCG | |
Packaging | Digi-Reel® | |
Part Status | Discontinued | |
Type | Wirewound | |
Material - Core | - | |
Inductance | 2.2µH | |
Tolerance | ±20% | |
Current Rating | 4.5A | |
Current - Saturation | 5A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 36.4 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -20°C ~ 120°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.217" L x 0.197" W (5.50mm x 5.00mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPLCG0530L2R2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPLCG0530L2R2 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPLCG0530L2R2 is new and unused, you can buy MPLCG0530L2R2 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPLCG0530L2R2.
