| Manufacturer Part Number: | MPLAD6.5KP60AE3 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 60VWM 96.8VC PLAD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPLAD6.5KP60AE3 Datasheet |
| Internal Part Number | 898-MPLAD6.5KP60AE3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 60V | |
| Voltage - Breakdown (Min) | 66.7V | |
| Voltage - Clamping (Max) @ Ipp | 96.8V | |
| Current - Peak Pulse (10/1000µs) | 67.4A | |
| Power - Peak Pulse | 6500W (6.5kW) | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

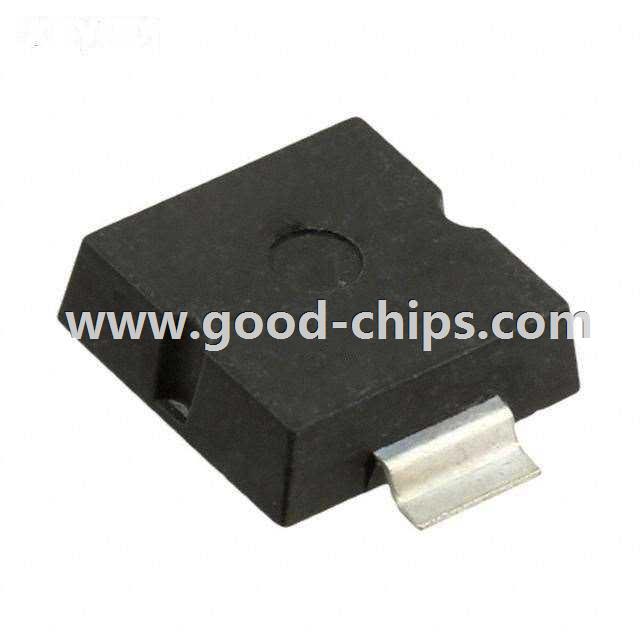

| Package / Case | Nonstandard SMD | |
| Supplier Device Package | PLAD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPLAD6.5KP60AE3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPLAD6.5KP60AE3 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MPLAD6.5KP60AE3 is new and unused, you can buy MPLAD6.5KP60AE3 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPLAD6.5KP60AE3.
