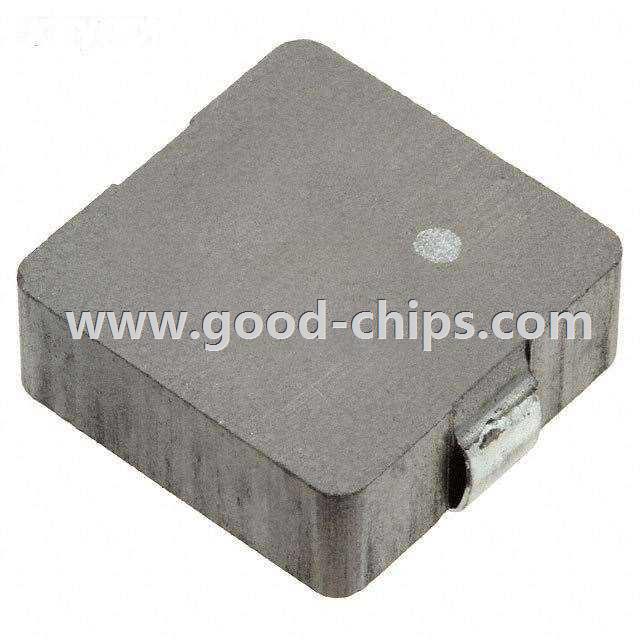

Manufacturer Part Number: | MPCH1250L1R5 |
---|---|
Manufacturer: | Kemet |
Product Category: | Fixed Inductors |
Available Quantity: | 9510 Pieces |
Unit Price: | Quote by Email |
Description: | 1.5µH Unshielded Inductor 21A 2.2 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPCH1250L1R5 Datasheet |
Internal Part Number | 898-MPCH1250L1R5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Metal Composite SMD Power Inductors | |
Online Catalog | MPCH Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Kemet | |
Series | MPCH | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Metal Composite | |
Inductance | 1.5µH | |
Tolerance | ±20% | |
Current Rating | 21A | |
Current - Saturation | 21A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 2.2 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -20°C ~ 120°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.563" L x 0.492" W (14.30mm x 12.50mm) | |
Height - Seated (Max) | 0.197" (5.00mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPCH1250L1R5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPCH1250L1R5 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPCH1250L1R5 is new and unused, you can buy MPCH1250L1R5 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPCH1250L1R5.
