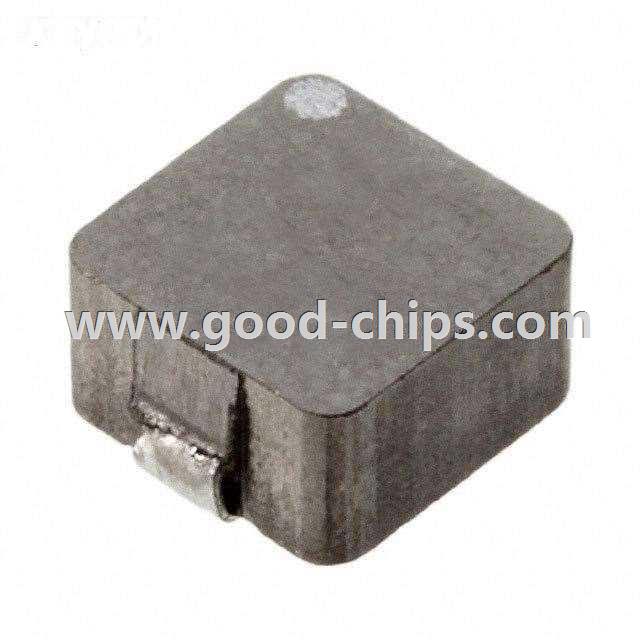

| Manufacturer Part Number: | MPCH0740LR15 |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11612 Pieces |
| Unit Price: | Quote by Email |
| Description: | 150nH Unshielded Inductor 29A 0.93 mOhm 2-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPCH0740LR15 Datasheet |
| Internal Part Number | 898-MPCH0740LR15 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Metal Composite SMD Power Inductors | |
| Online Catalog | MPCH Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Kemet | |
| Series | MPCH | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | - | |
| Material - Core | Metal Composite | |
| Inductance | 150nH | |
| Tolerance | ±20% | |
| Current Rating | 29A | |
| Current - Saturation | 31A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 0.93 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -20°C ~ 120°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD | |
| Size / Dimension | 0.315" L x 0.264" W (8.00mm x 6.70mm) | |
| Height - Seated (Max) | 0.157" (4.00mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPCH0740LR15 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPCH0740LR15 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPCH0740LR15 is new and unused, you can buy MPCH0740LR15 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPCH0740LR15.
