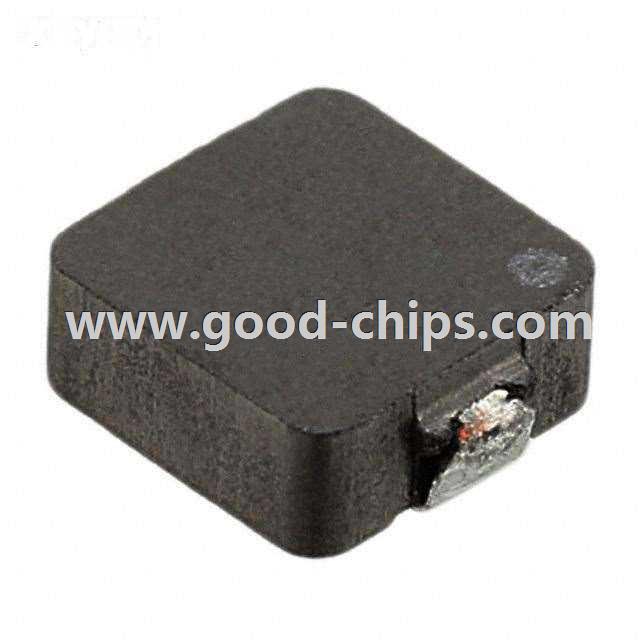

Manufacturer Part Number: | MPCH0730LR12 |
---|---|
Manufacturer: | Kemet |
Product Category: | Fixed Inductors |
Available Quantity: | 10127 Pieces |
Unit Price: | Quote by Email |
Description: | 120nH Unshielded Inductor 31A 0.65 mOhm Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPCH0730LR12 Datasheet |
Internal Part Number | 898-MPCH0730LR12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Metal Composite SMD Power Inductors | |
Online Catalog | MPCH Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Kemet | |
Series | MPCH | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | - | |
Material - Core | Metal Composite | |
Inductance | 120nH | |
Tolerance | ±20% | |
Current Rating | 31A | |
Current - Saturation | 32A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 0.65 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -20°C ~ 120°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.315" L x 0.264" W (8.00mm x 6.70mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPCH0730LR12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPCH0730LR12 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPCH0730LR12 is new and unused, you can buy MPCH0730LR12 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPCH0730LR12.
