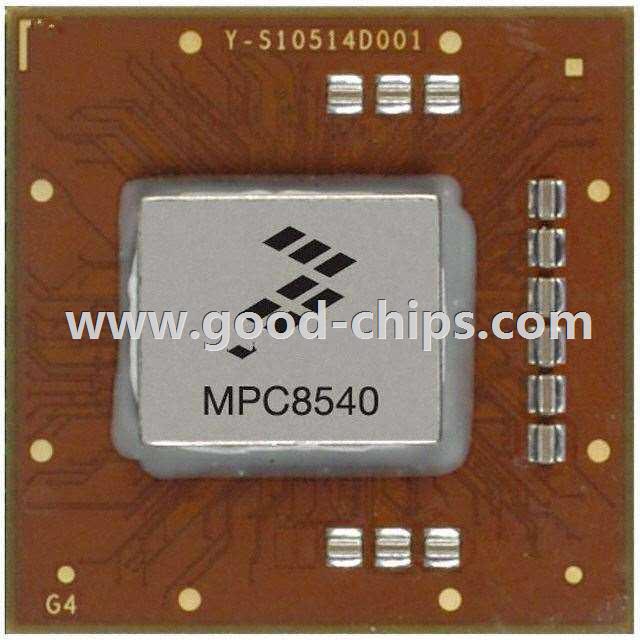

| Manufacturer Part Number: | MPC8540ADS-BGA |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MPC8540 PowerQUICC III™ MPU e500 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPC8540ADS-BGA Datasheet |
| Internal Part Number | 898-MPC8540ADS-BGA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | PowerQUICC III™ | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MPU | |
| Core Processor | e500 | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | MPC8540 | |
| Mounting Type | Fixed | |
| Contents | Board(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPC8540ADS-BGA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPC8540ADS-BGA is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MPC8540ADS-BGA is new and unused, you can buy MPC8540ADS-BGA NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPC8540ADS-BGA.
