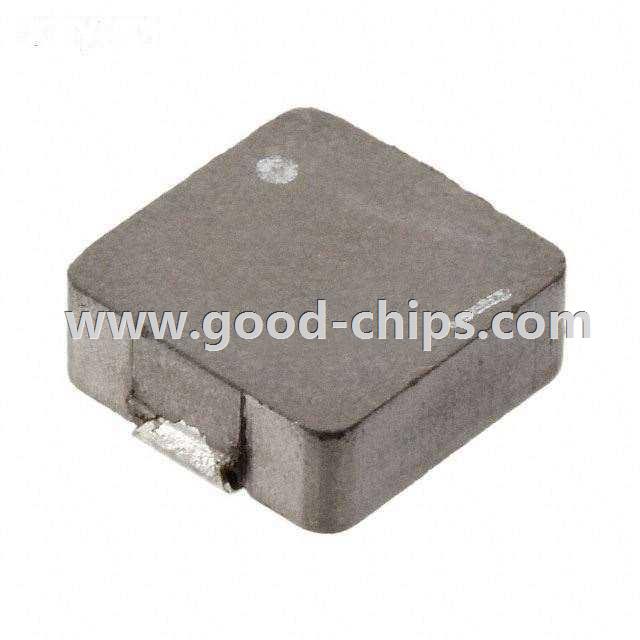

Manufacturer Part Number: | MPC1040LR36C |
---|---|
Manufacturer: | Kemet |
Product Category: | Fixed Inductors |
Available Quantity: | 9510 Pieces |
Unit Price: | Quote by Email |
Description: | 360nH Unshielded Inductor 25.5A 1.05 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPC1040LR36C Datasheet |
Internal Part Number | 898-MPC1040LR36C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Metal Composite SMD Power Inductors | |
Online Catalog | MPC Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Kemet | |
Series | MPC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Ferrite | |
Inductance | 360nH | |
Tolerance | ±20% | |
Current Rating | 25.5A | |
Current - Saturation | 30A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 1.05 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -20°C ~ 120°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | |
Height - Seated (Max) | 0.157" (4.00mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPC1040LR36C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPC1040LR36C is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPC1040LR36C is new and unused, you can buy MPC1040LR36C Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPC1040LR36C.
