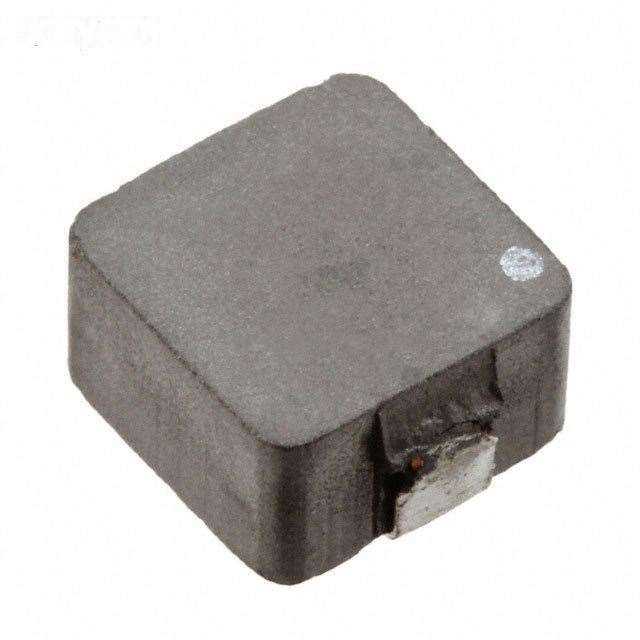

Manufacturer Part Number: | MPC0740LR42C |
---|---|
Manufacturer: | Kemet |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 420nH Unshielded Inductor 22A 1.55 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPC0740LR42C Datasheet |
Internal Part Number | 898-MPC0740LR42C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Metal Composite SMD Power Inductors | |
Online Catalog | MPC Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Kemet | |
Series | MPC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Ferrite | |
Inductance | 420nH | |
Tolerance | ±20% | |
Current Rating | 22A | |
Current - Saturation | 20A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 1.55 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -20°C ~ 120°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.315" L x 0.264" W (8.00mm x 6.70mm) | |
Height - Seated (Max) | 0.157" (4.00mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPC0740LR42C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPC0740LR42C is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MPC0740LR42C is new and unused, you can buy MPC0740LR42C Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPC0740LR42C.
