| Manufacturer Part Number: | MP4601EF-LF |
|---|---|
| Manufacturer: | Monolithic Power Systems Inc. |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 2.5A (Switch) 16-TSSOP-EP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MP4601EF-LF Datasheet |
| Internal Part Number | 898-MP4601EF-LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Lead Free Policy | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Monolithic Power Systems Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 4.5V | |
| Voltage - Supply (Max) | 75V | |
| Voltage - Output | - | |
| Current - Output / Channel | 2.5A (Switch) | |
| Frequency | 280kHz | |
| Dimming | Analog, PWM | |
| Applications | Backlight | |
| Operating Temperature | -20°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

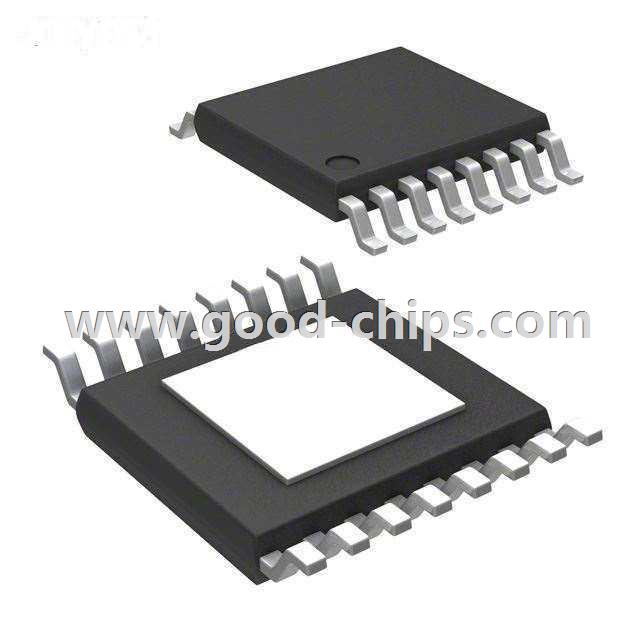

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 16-TSSOP-EP | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MP4601EF-LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MP4601EF-LF is in stock for immediate shipping now. We are the distributor of Monolithic Power Systems Inc. all series components. The condition of MP4601EF-LF is new and unused, you can buy MP4601EF-LF Monolithic Power Systems Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP4601EF-LF.
