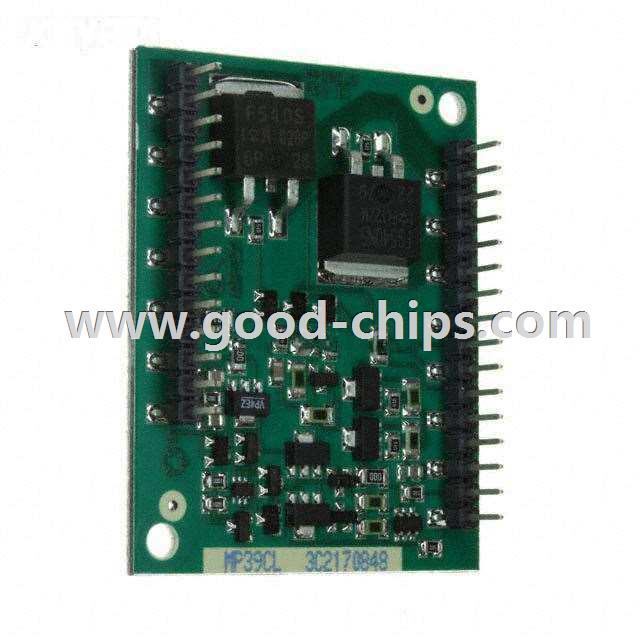

Manufacturer Part Number: | MP39CL |
---|---|
Manufacturer: | Apex Microtechnology |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9148 Pieces |
Unit Price: | Quote by Email |
Description: | Power Amplifier 1 Circuit 30-DIP |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MP39CL Datasheet |
Internal Part Number | 898-MP39CL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Analog Portfolio | |
PCN Design/Specification | MPyyy Datasheet Update 24/Feb/2012 | |
PCN Assembly/Origin | Source Supplier 04/Jan/2016 | |
Online Catalog | Power | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | Apex Microtechnology | |
Series | Apex Precision Power® | |
Packaging | Tube | |
Part Status | Active | |
Amplifier Type | Power | |
Number of Circuits | 1 | |
Output Type | - | |
Slew Rate | 10 V/µs | |
Gain Bandwidth Product | 2MHz | |
-3db Bandwidth | - | |
Current - Input Bias | 10pA | |
Voltage - Input Offset | 5mV | |
Current - Supply | 26mA | |
Current - Output / Channel | 10A | |
Voltage - Supply, Single/Dual (±) | 30 V ~ 100 V, ±15 V ~ 50 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Through Hole | |
Package / Case | 30-DIP Module | |
Supplier Device Package | 30-DIP | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MP39CL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MP39CL is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of MP39CL is new and unused, you can buy MP39CL Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP39CL.
