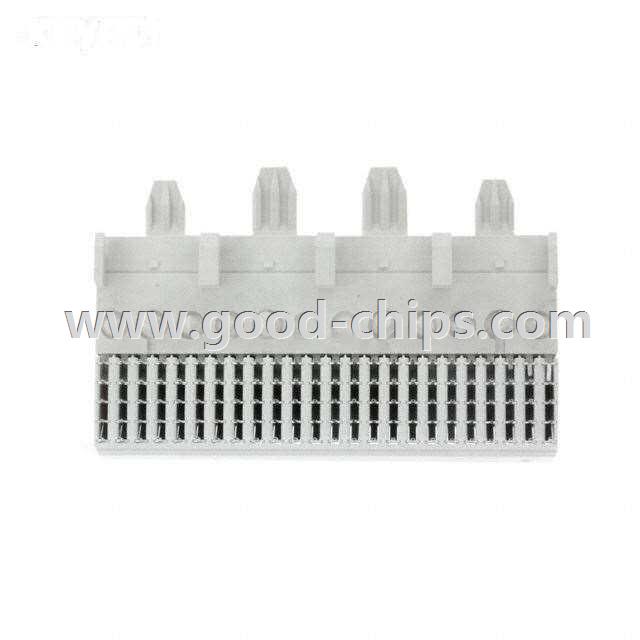

Manufacturer Part Number: | MP2-S120G-51M1-C-LR |
---|---|
Manufacturer: | 3M |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN SOCKET INVERSE 120POS 5ROW |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MP2-S120G-51M1-C-LR Datasheet |
Internal Part Number | 898-MP2-S120G-51M1-C-LR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | 3M | |
Series | MetPak™ MP2 | |
Packaging | Tube | |
Part Status | Active | |
Connector Usage | Backplane | |
Connector Type | Receptacle, Female Sockets | |
Connector Style | Futurebus+® | |
Number of Positions | 120 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 5 | |
Number of Columns | - | |
Mounting Type | Board Edge, Through Hole, Right Angle | |
Termination | Solder | |
Contact Layout, Typical | - | |
Features | Board Guide, Board Lock, Spacer | |
Contact Finish | Gold | |
Contact Finish Thickness | 3µin (0.08µm) | |
Color | Beige | |
Current Rating | 1.5A | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Standard Package | 160 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MP2-S120G-51M1-C-LR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MP2-S120G-51M1-C-LR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MP2-S120G-51M1-C-LR is new and unused, you can buy MP2-S120G-51M1-C-LR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP2-S120G-51M1-C-LR.
