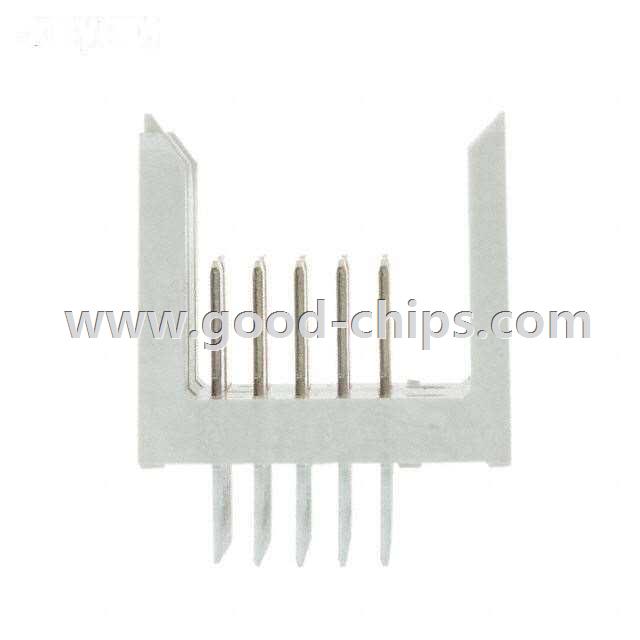

| Manufacturer Part Number: | MP2-HP10-51P1-KR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 11014 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN POWER HEADER 5ROW 10POS P-F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MP2-HP10-51P1-KR Datasheet |
| Internal Part Number | 898-MP2-HP10-51P1-KR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | MP2-HP10-51P1-XXXX.stp MP2-HP10-51P1-XXXX.igs MP2-HP10-51P1-XXXX.x_t | |
| Online Catalog | MetPak™ MP2 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | 3M | |
| Series | MetPak™ MP2 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Usage | Backplane | |
| Connector Type | Header, Male Blades | |
| Connector Style | Blade Power | |
| Number of Positions | 10 | |
| Number of Positions Loaded | All | |
| Pitch | 0.236" (6.00mm) | |
| Number of Rows | 5 | |
| Number of Columns | - | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 10 Power | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Beige | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Standard Package | 840 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MP2-HP10-51P1-KR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MP2-HP10-51P1-KR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MP2-HP10-51P1-KR is new and unused, you can buy MP2-HP10-51P1-KR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP2-HP10-51P1-KR.
