| Manufacturer Part Number: | MP101401 |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

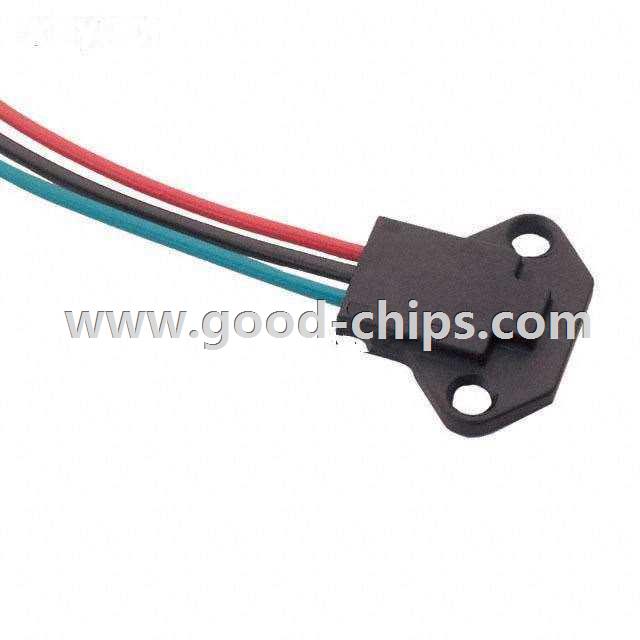

| Description: | Magnetic Hall Effect Sensor Magnet, South Pole Digital Wire Leads Module, Non-Standard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MP101401 Datasheet |
| Internal Part Number | 898-MP101401 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
| Manufacturer | Cherry | |
| Series | MP1 | |
| Part Status | Active | |
| Output Type | Digital | |
| Type | Hall Effect Sensor | |
| Actuator Material | Magnet, South Pole | |
| Termination Style | Wire Leads | |
| Frequency | - | |
| Voltage - Supply | 4.5 V ~ 18 V | |
| Must Operate | - | |
| Must Release | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | Module, Non-Standard | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MP101401 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MP101401 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of MP101401 is new and unused, you can buy MP101401 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP101401.
