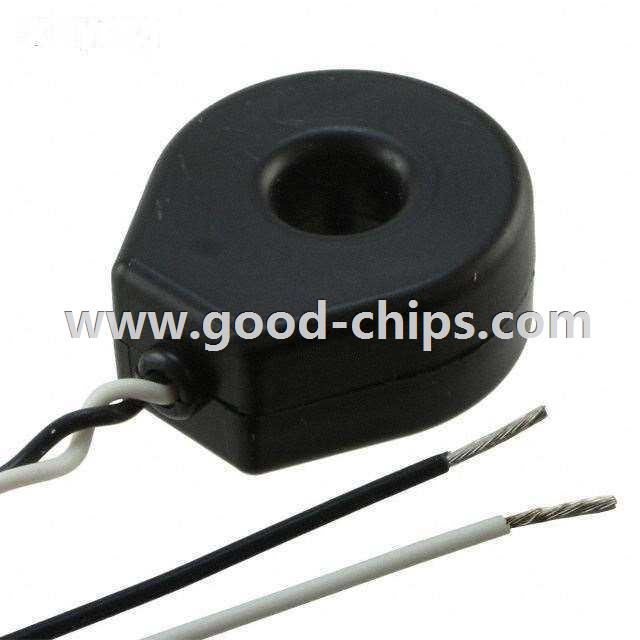

| Manufacturer Part Number: | MODEL 19 |
|---|---|
| Manufacturer: | CR Magnetics Inc. |
| Product Category: | Current Sense Transformers |
| Available Quantity: | 9560 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSFORMER CURR .29" OPENING LD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MODEL 19 Datasheet |
| Internal Part Number | 898-MODEL 19 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Remote Electrical Current Indicators | |
| Online Catalog | PH Series | |
| Category | Transformers | |
| Family | Current Sense Transformers | |
| Manufacturer | CR Magnetics Inc. | |
| Series | PH | |
| Part Status | Active | |
| Turns Ratio - Primary:Secondary | - | |
| Frequency | 50Hz ~ 1kHz | |
| Inductance | - | |
| Current Rating | 100A | |
| DC Resistance (DCR) | - | |
| E.T. | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Size / Dimension | 24.10mm Dia x 11.70mm W | |
| Height - Seated (Max) | - | |
| Termination Style | Wire Leads | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MODEL 19 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MODEL 19 is in stock for immediate shipping now. We are the distributor of CR Magnetics Inc. all series components. The condition of MODEL 19 is new and unused, you can buy MODEL 19 CR Magnetics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MODEL 19.
