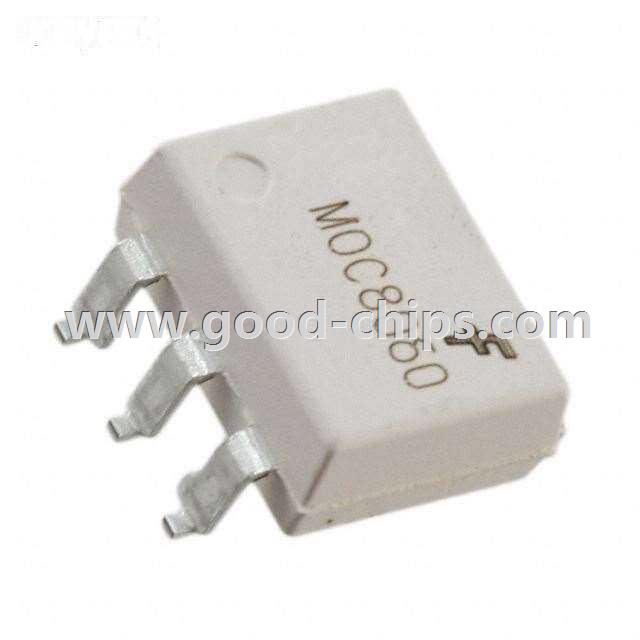

Manufacturer Part Number: | MOC8050SR2VM |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Optoisolators - Transistor, Photovoltaic Output |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Optoisolator Darlington Output 4170Vrms 1 Channel 6-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MOC8050SR2VM Datasheet |
Internal Part Number | 898-MOC8050SR2VM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MOC8021M/8050M Series | |
Category | Isolators | |
Family | Optoisolators - Transistor, Photovoltaic Output | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Channels | 1 | |
Voltage - Isolation | 4170Vrms | |
Current Transfer Ratio (Min) | 500% @ 10mA | |
Current Transfer Ratio (Max) | - | |
Turn On / Turn Off Time (Typ) | 8.5µs, 95µs | |
Rise / Fall Time (Typ) | - | |
Input Type | DC | |
Output Type | Darlington | |
Voltage - Output (Max) | 80V | |
Current - Output / Channel | 150mA | |
Voltage - Forward (Vf) (Typ) | 1.18V | |
Current - DC Forward (If) (Max) | 60mA | |
Vce Saturation (Max) | - | |
Operating Temperature | -40°C ~ 100°C | |
Mounting Type | Surface Mount | |
Package / Case | 6-SMD, Gull Wing | |
Supplier Device Package | 6-SMD | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MOC8050SR2VM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MOC8050SR2VM is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of MOC8050SR2VM is new and unused, you can buy MOC8050SR2VM Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MOC8050SR2VM.
