MNG18-6FFB/SX-BOTTLE

MNG18-6FFB/SX-BOTTLE
Manufacturer Part Number:MNG18-6FFB/SX-BOTTLE
Manufacturer:
Product Category:Terminals - Spade Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email

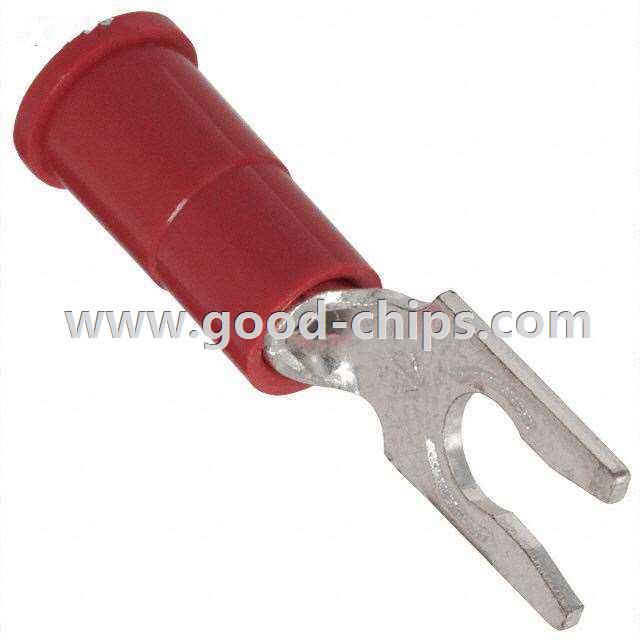

Description:Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: MNG18-6FFB/SX-BOTTLE Datasheet
MNG18-6FFB/SX-BOTTLE´s Parameters
Category
Internal Part Number898-MNG18-6FFB/SX-BOTTLE
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
  • TR-490-ND
  • 3M
  • TOOL HAND CRIMPER 10-22AWG SIDEUnit Price281.64000
  • TH-450-ND
  • 3M
  • TOOL HAND CRIMPER 6-26AWG SIDEUnit Price95.01000
  • TR-482-ND
  • 3M
  • TOOL HAND CRIMPER 10-22AWG SIDEUnit Price381.16000
  • 920099-R-ND
  • 3M
  • TOOL HAND CRIMPER 10-22AWG SIDEUnit Price84.25000
    • Connectors, Interconnects
    FamilyTerminals - Spade Connectors
    Manufacturer3M
    SeriesScotchlok™
    PackagingBulk
    Part StatusActive
    Terminal TypeFlanged
    Stud/Tab Size6 Stud
    Width - Outer Edges0.250" (6.35mm)
    Length - Overall0.840" (21.34mm)
    Mounting TypeFree Hanging (In-Line)
    TerminationCrimp
    Wire Gauge18-22 AWG
    InsulationInsulated
    Features-
    ColorRed
    Contact FinishTin
    Contact MaterialCopper, ETP
    Insulation Diameter0.145" (3.68mm)
    Material - InsulationPolyamide (PA), Nylon
    Length - Ring Center to Termination0.250" (6.35mm)
    Length - Termination0.440" (11.18mm)
    Tongue Inside Opening-
    Standard Package 100
    Weight0.001 KG
    ApplicationEmail for details
    Replacement PartMNG18-6FFB/SX-BOTTLE
    Country of OriginUSA / JAPAN / Philippines / Malaysia
    MOQ1 Piece
    Picture / Image / PhotoSend via email

    MNG18-6FFB/SX-BOTTLE is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MNG18-6FFB/SX-BOTTLE is new and unused, you can buy MNG18-6FFB/SX-BOTTLE 3M with us at a very low price and quick delivery.

    Please kindly send us an email if you have any demands for MNG18-6FFB/SX-BOTTLE.
