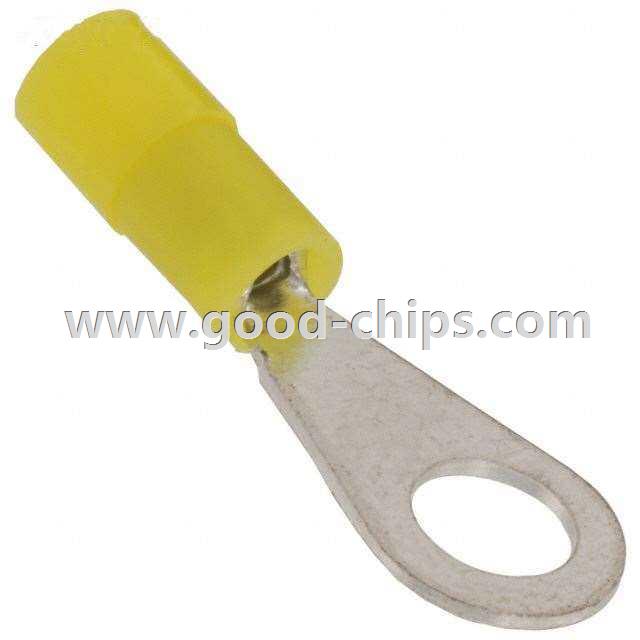

| Manufacturer Part Number: | MN24-6RK |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Terminals - Ring Connectors |
| Available Quantity: | 9513 Pieces |
| Unit Price: | Quote by Email |
| Description: | Ring Terminal Connector 6 Stud Circular 22-26 AWG Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MN24-6RK Datasheet |
| Internal Part Number | 898-MN24-6RK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Scotchlok Terminals Training | |
| Featured Product | Scotchlok™ Tools and Connectors | |
| Online Catalog | Scotchlok™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Ring Connectors | |
| Manufacturer | 3M | |
| Series | Scotchlok™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Circular | |
| Stud/Tab Size | 6 Stud | |
| Thickness | 0.020" (0.51mm) | |
| Width - Outer Edges | 0.240" (6.10mm) | |
| Length - Overall | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 22-26 AWG | |
| Insulation | Insulated | |
| Features | Brazed Seam | |
| Color | Yellow | |
| Contact Material | Copper | |
| Contact Finish | Tin | |
| Insulation Diameter | 0.090" (2.29mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MN24-6RK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MN24-6RK is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MN24-6RK is new and unused, you can buy MN24-6RK 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MN24-6RK.
