| Manufacturer Part Number: | MN101CF49KXN |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9322 Pieces |
| Unit Price: | Quote by Email |
| Description: | MN101C AM1 Microcontroller IC 8-Bit 20MHz 224KB (224K x 8) FLASH 100-QFP (18x18) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MN101CF49KXN Datasheet |
| Internal Part Number | 898-MN101CF49KXN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Panasonic Electronic Components | |
| Series | AM1 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | MN101C | |
| Core Size | 8-Bit | |
| Speed | 20MHz | |
| Connectivity | I²C, UART/USART | |
| Peripherals | DMA, PWM, WDT | |
| Number of I/O | 73 | |
| Program Memory Size | 224KB (224K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 10K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 5.5 V | |
| Data Converters | A/D 8x10b; D/A 4x8b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

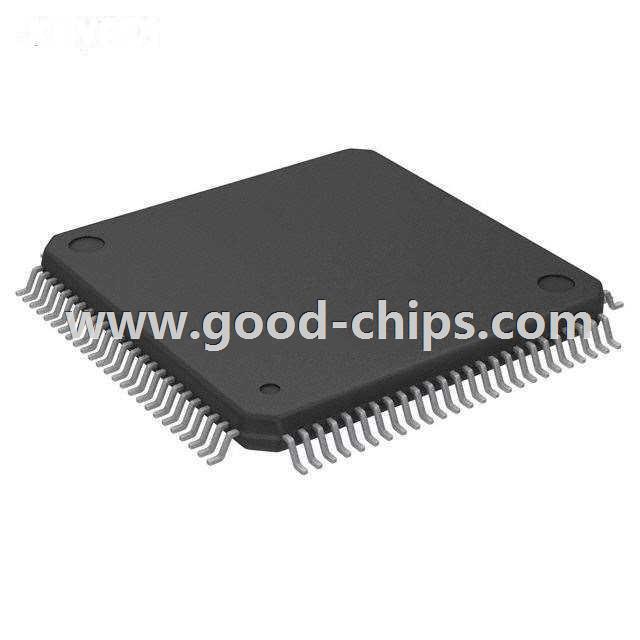

| Package / Case | 100-BQFP | |
| Supplier Device Package | 100-QFP (18x18) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MN101CF49KXN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MN101CF49KXN is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of MN101CF49KXN is new and unused, you can buy MN101CF49KXN Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MN101CF49KXN.
