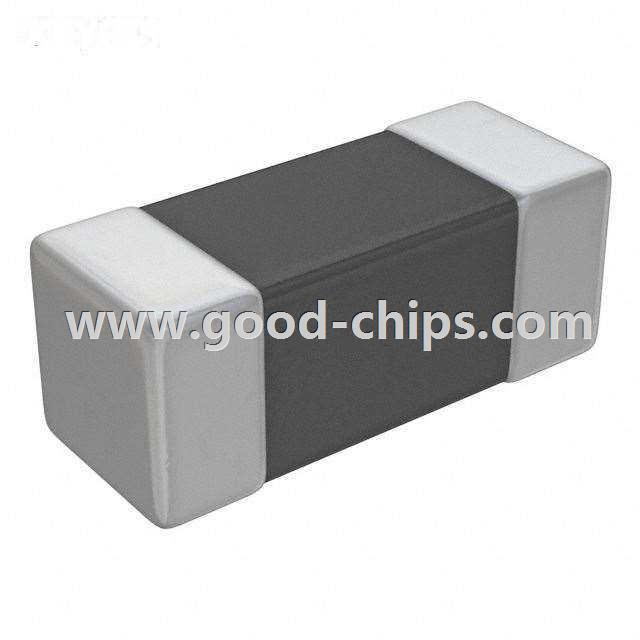

| Manufacturer Part Number: | MMZ2012S800ATD25 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 80 Ohm Impedance Ferrite Bead 0805 (2012 Metric) Surface Mount Signal Line 800mA 1 Lines 100 mOhm Max DCR -55°C ~ 125°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MMZ2012S800ATD25 Datasheet |
| Internal Part Number | 898-MMZ2012S800ATD25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MMZ2012 Series | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | TDK Corporation | |
| Series | MMZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 80 Ohm @ 100MHz | |
| Current Rating (Max) | 800mA | |
| DC Resistance (DCR) (Max) | 100 mOhm | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -55°C ~ 125°C | |
| Package / Case | 0805 (2012 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.041" (1.05mm) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MMZ2012S800ATD25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MMZ2012S800ATD25 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MMZ2012S800ATD25 is new and unused, you can buy MMZ2012S800ATD25 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MMZ2012S800ATD25.
