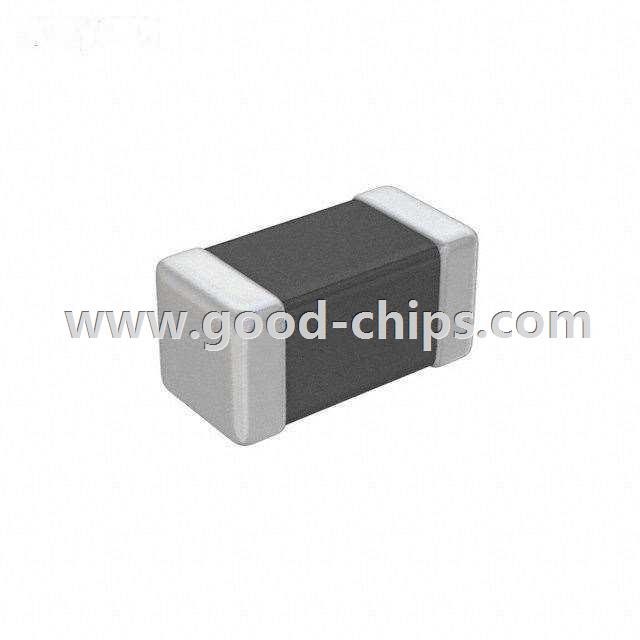

Manufacturer Part Number: | MMZ0402S151CT000 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 29010 Pieces |
Unit Price: | Quote by Email |
Description: | 150 Ohm Impedance Ferrite Bead 01005 (0402 Metric) Surface Mount Signal Line 200mA 1 Lines 700 mOhm Max DCR -55°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MMZ0402S151CT000 Datasheet |
Internal Part Number | 898-MMZ0402S151CT000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Part Number | MMZ,MPS Series Oct/2014 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | MMZ0402 Series | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | TDK Corporation | |
Series | MMZ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Signal Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 150 Ohm @ 100MHz | |
Current Rating (Max) | 200mA | |
DC Resistance (DCR) (Max) | 700 mOhm | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Package / Case | 01005 (0402 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.009" (0.22mm) | |
Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | |
Standard Package | 20,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MMZ0402S151CT000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MMZ0402S151CT000 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MMZ0402S151CT000 is new and unused, you can buy MMZ0402S151CT000 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MMZ0402S151CT000.
