Manufacturer Part Number: | MMIX1F44N100Q3 |
---|---|
Manufacturer: | IXYS |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 1000V 30A |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MMIX1F44N100Q3 Datasheet |
Internal Part Number | 898-MMIX1F44N100Q3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Q3 HiPerFETT Power MOSFET in SMPD Package | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | IXYS | |
Series | HiPerFET™ | |
Packaging | Tube | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 1000V (1kV) | |
Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | |
Rds On (Max) @ Id, Vgs | 245 mOhm @ 22A, 10V | |
Vgs(th) (Max) @ Id | 6.5V @ 8mA | |
Gate Charge (Qg) @ Vgs | 264nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 13600pF @ 25V | |
Power - Max | 694W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

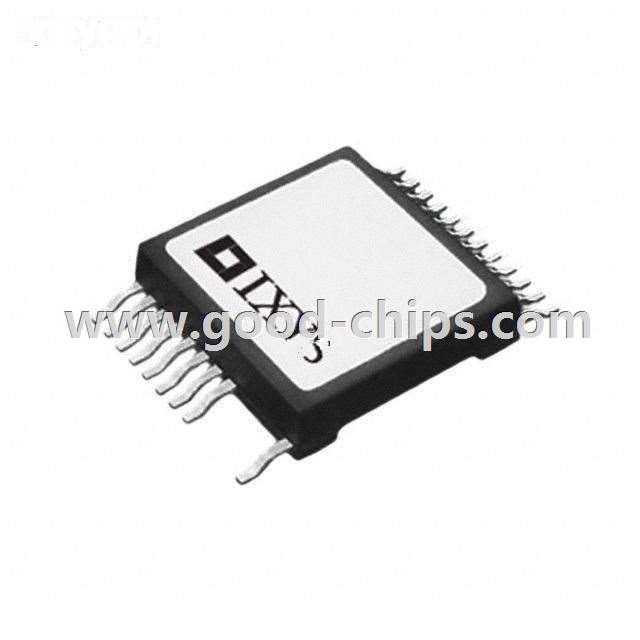

Package / Case | 24-PowerSMD, 21 Leads | |
Supplier Device Package | 24-SMPD | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MMIX1F44N100Q3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MMIX1F44N100Q3 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MMIX1F44N100Q3 is new and unused, you can buy MMIX1F44N100Q3 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MMIX1F44N100Q3.
