| Manufacturer Part Number: | MMDT3946LP4-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - Bipolar (BJT) - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN/PNP 40V 0.2A 6DFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MMDT3946LP4-7 Datasheet |
| Internal Part Number | 898-MMDT3946LP4-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | NPN, PNP | |
| Current - Collector (Ic) (Max) | 200mA | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA | |
| Current - Collector Cutoff (Max) | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V | |
| Power - Max | 200mW | |
| Frequency - Transition | 300MHz, 250MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, No Lead | |

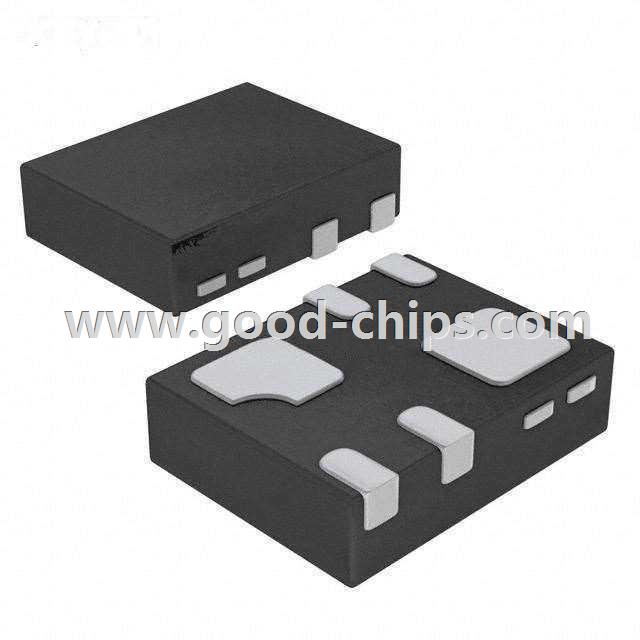

| Supplier Device Package | 6-DFN1310H4 (1.0x1.3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MMDT3946LP4-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MMDT3946LP4-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of MMDT3946LP4-7 is new and unused, you can buy MMDT3946LP4-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MMDT3946LP4-7.
