MMBZ5250BT-7-F

MMBZ5250BT-7-F
Manufacturer Part Number:MMBZ5250BT-7-F
Manufacturer:
Product Category:Diodes - Zener - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Zener Diode 20V 150mW ±5% Surface Mount SOT-523
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: MMBZ5250BT-7-F Datasheet
MMBZ5250BT-7-F´s Parameters
Internal Part Number898-MMBZ5250BT-7-F
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS Cert of Compliance
PCN Design/SpecificationGreen Encapsulate Change 09/July/2007
CategoryDiscrete Semiconductor Products
FamilyDiodes - Zener - Single
ManufacturerDiodes Incorporated
Series-
PackagingTape & Reel (TR)
Part StatusActive
Voltage - Zener (Nom) (Vz)20V
Tolerance±5%
Power - Max150mW
Impedance (Max) (Zzt)25 Ohm
Current - Reverse Leakage @ Vr100nA @ 15V
Voltage - Forward (Vf) (Max) @ If900mV @ 10mA
Operating Temperature-65°C ~ 150°C
Mounting TypeSurface Mount

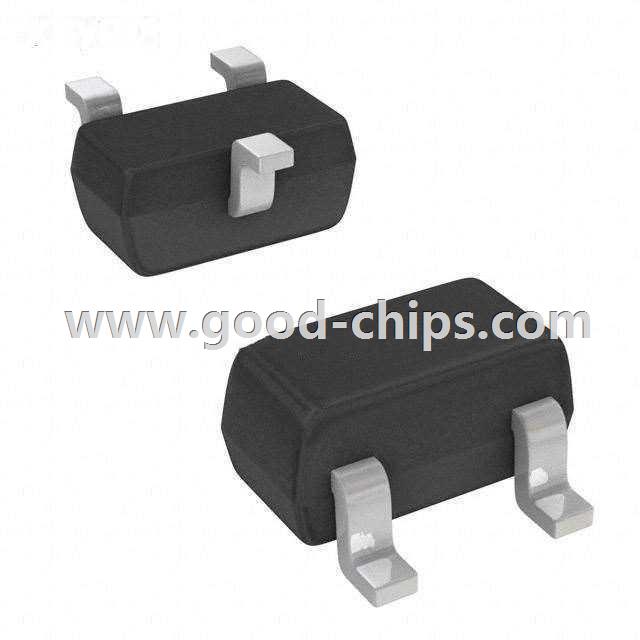

Package / CaseSOT-523
Supplier Device PackageSOT-523
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartMMBZ5250BT-7-F
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

MMBZ5250BT-7-F is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of MMBZ5250BT-7-F is new and unused, you can buy MMBZ5250BT-7-F Diodes Incorporated with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for MMBZ5250BT-7-F.
