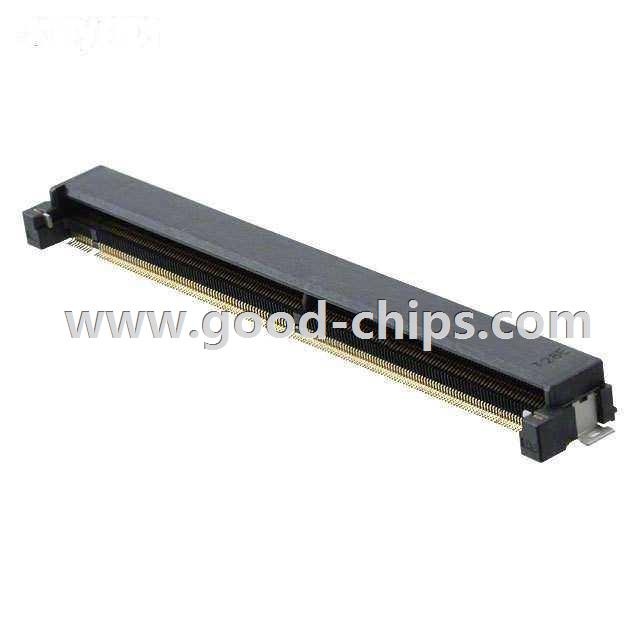

| Manufacturer Part Number: | MM70-314-310B1-1-R300 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 11110 Pieces |
| Unit Price: | Quote by Email |
| Description: | MEM SOCKET 314POS RT ANG GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MM70-314-310B1-1-R300 Datasheet |
| Internal Part Number | 898-MM70-314-310B1-1-R300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Card Selection Guide | |
| Product Training Modules | MM70 Series MXM3.0 Compatible Connector | |
| Online Catalog | MM70 Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | JAE Electronics | |
| Series | MM70 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Card Type | MXM 3.0 | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 314 | |
| Card Thickness | 0.047" (1.20mm) | |
| Number of Rows | 2 | |
| Pitch | 0.020" (0.50mm) | |
| Features | Board Guide, Latches | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled | |
| Read Out | Dual | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MM70-314-310B1-1-R300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MM70-314-310B1-1-R300 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of MM70-314-310B1-1-R300 is new and unused, you can buy MM70-314-310B1-1-R300 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MM70-314-310B1-1-R300.
