| Manufacturer Part Number: | MLZ2012A2R2WT000 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

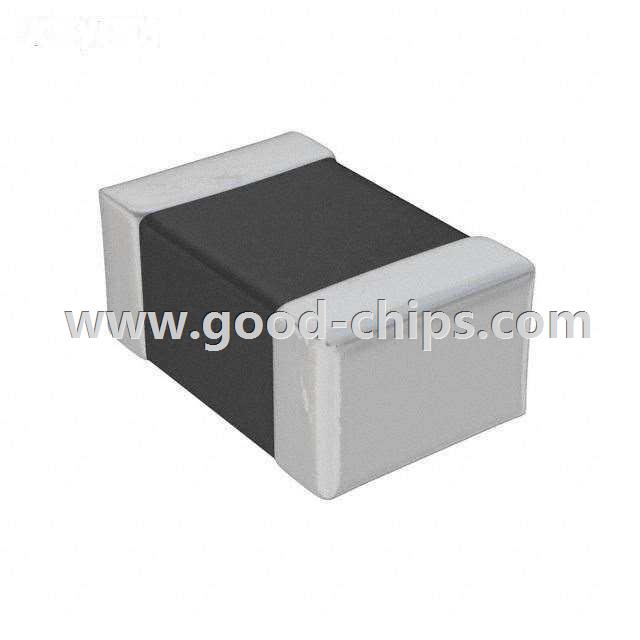

| Description: | 2.2µH Shielded Multilayer Inductor 650mA 195 mOhm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MLZ2012A2R2WT000 Datasheet |
| Internal Part Number | 898-MLZ2012A2R2WT000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SMD Inductors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MLZ Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | MLZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | Ferrite | |
| Inductance | 2.2µH | |
| Tolerance | ±20% | |
| Current Rating | 650mA | |
| Current - Saturation | 210mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 195 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 120MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 10MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.041" (1.05mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MLZ2012A2R2WT000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MLZ2012A2R2WT000 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MLZ2012A2R2WT000 is new and unused, you can buy MLZ2012A2R2WT000 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MLZ2012A2R2WT000.
