Manufacturer Part Number: | MLZ1608M220WT000 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

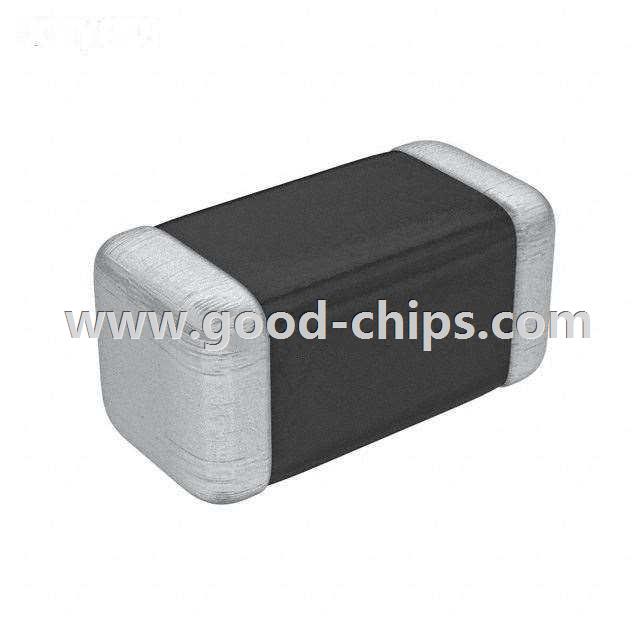

Description: | 22µH Shielded Multilayer Inductor 150mA 3.12 Ohm Max 0603 (1608 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MLZ1608M220WT000 Datasheet |
Internal Part Number | 898-MLZ1608M220WT000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SMD Inductors | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | MLZ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | Ferrite | |
Inductance | 22µH | |
Tolerance | ±20% | |
Current Rating | 150mA | |
Current - Saturation | 55mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 3.12 Ohm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 2MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0603 (1608 Metric) | |
Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
Height - Seated (Max) | 0.037" (0.95mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MLZ1608M220WT000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MLZ1608M220WT000 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MLZ1608M220WT000 is new and unused, you can buy MLZ1608M220WT000 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MLZ1608M220WT000.
