Manufacturer Part Number: | MLK1005S3N6STD25 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

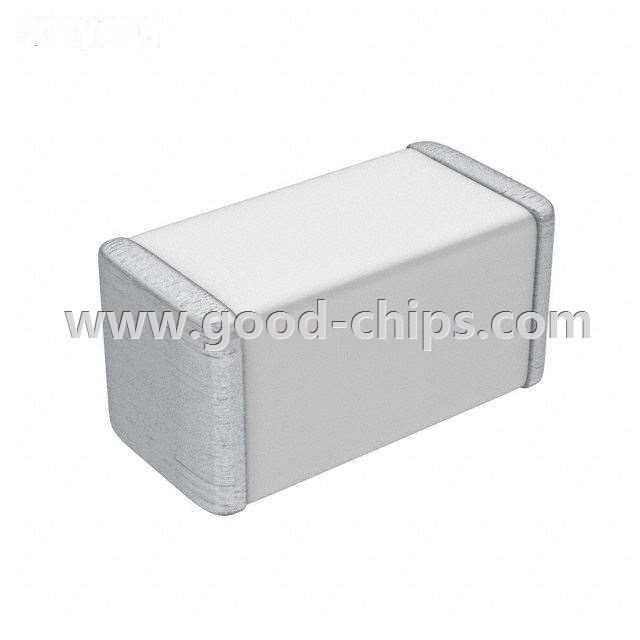

Description: | 3.6nH Unshielded Multilayer Inductor 400mA 250 mOhm Max 0402 (1005 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MLK1005S3N6STD25 Datasheet |
Internal Part Number | 898-MLK1005S3N6STD25 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SMD Inductors High Frequency Inductor Family | |
Featured Product | MLK Series Multilayer Ceramic High-Frequency Inductor | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | MLK Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | MLK | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | Non-Magnetic | |
Inductance | 3.6nH | |
Tolerance | ±0.3nH | |
Current Rating | 400mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 250 mOhm Max | |
Q @ Freq | 7 @ 100MHz | |
Frequency - Self Resonant | 6.8GHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 100MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0402 (1005 Metric) | |
Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
Height - Seated (Max) | 0.024" (0.60mm) | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MLK1005S3N6STD25 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MLK1005S3N6STD25 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MLK1005S3N6STD25 is new and unused, you can buy MLK1005S3N6STD25 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MLK1005S3N6STD25.
