Manufacturer Part Number: | MLG0603Q6N2S |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

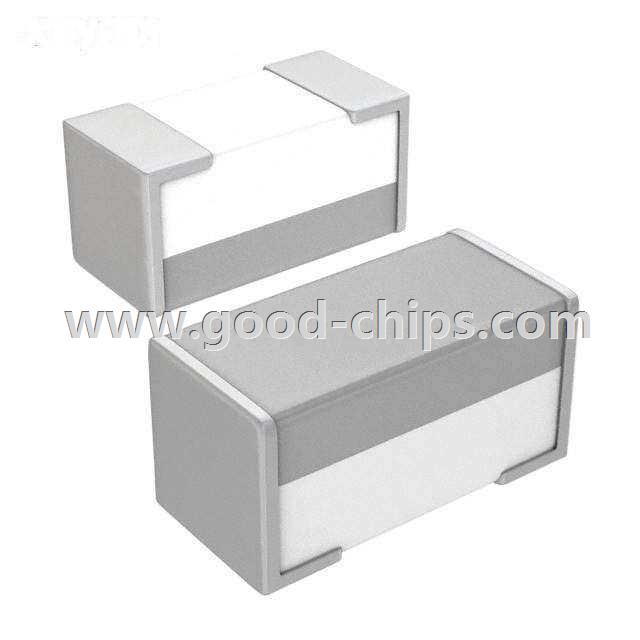

Description: | 6.2nH Unshielded Multilayer Inductor 250mA 550 mOhm Max 0201 (0603 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MLG0603Q6N2S Datasheet |
Internal Part Number | 898-MLG0603Q6N2S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | TDK Corporation | |
Series | MLG-Q | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Multilayer | |
Material - Core | Non-Magnetic | |
Inductance | 6.2nH | |
Tolerance | ±0.3nH | |
Current Rating | 250mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 550 mOhm Max | |
Q @ Freq | 5 @ 100MHz | |
Frequency - Self Resonant | 4.2GHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 100MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0201 (0603 Metric) | |
Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
Height - Seated (Max) | 0.013" (0.33mm) | |
Standard Package | 15,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MLG0603Q6N2S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MLG0603Q6N2S is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MLG0603Q6N2S is new and unused, you can buy MLG0603Q6N2S TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MLG0603Q6N2S.
