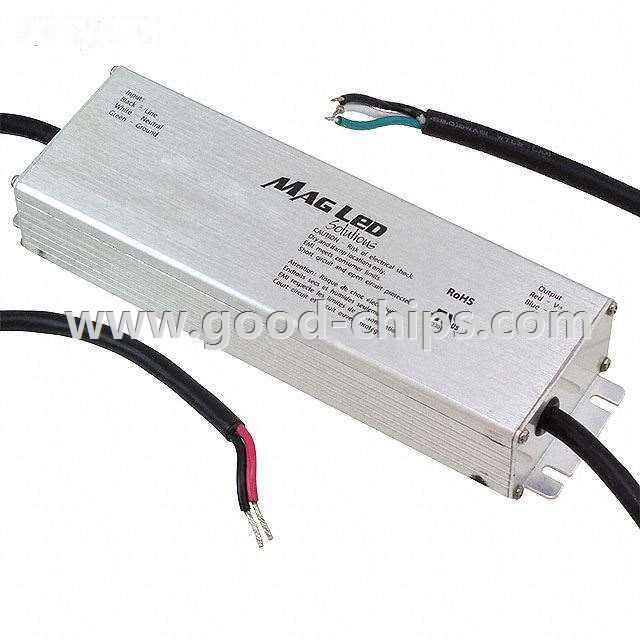

Manufacturer Part Number: | ML-A150-UVQ-24V |
---|---|
Manufacturer: | Mag-LED Solutions |
Product Category: | LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 6.25A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ML-A150-UVQ-24V Datasheet |
Internal Part Number | 898-ML-A150-UVQ-24V | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Online Catalog | ML-A150 | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | LED Drivers | |
Manufacturer | Mag-LED Solutions | |
Series | - | |
Part Status | Active | |
Type | Constant Current, Voltage | |
Topology | AC DC Converter | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 120VAC | |
Voltage - Input (Max) | 277VAC | |
Voltage - Output | 24V | |
Current - Output (Max) | 6.25A | |
Power (Watts) | 150W | |
Voltage - Isolation | 2kV (2000V) | |
Dimming | - | |
Features | OCP, OTP, SCP | |
Ratings | IP66 | |
Operating Temperature | -30°C ~ 60°C | |
Efficiency | 88% | |
Termination Style | Wire Leads | |
Size / Dimension | 8.94" L x 2.68" W x 1.52" H (227.1mm x 68.1mm x 38.6mm) | |
Mounting Type | Chassis Mount | |
Approvals | cULus | |
Weight | 0.001 KG | |
Standard Package | 540 | |
Application | Email for details | |
Replacement Part | ML-A150-UVQ-24V | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ML-A150-UVQ-24V is in stock for immediate shipping now. We are the distributor of Mag-LED Solutions all series components. The condition of ML-A150-UVQ-24V is new and unused, you can buy ML-A150-UVQ-24V Mag-LED Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ML-A150-UVQ-24V.
