| Manufacturer Part Number: | MKJ3B7W9-19SN |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | Circular Connectors |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |

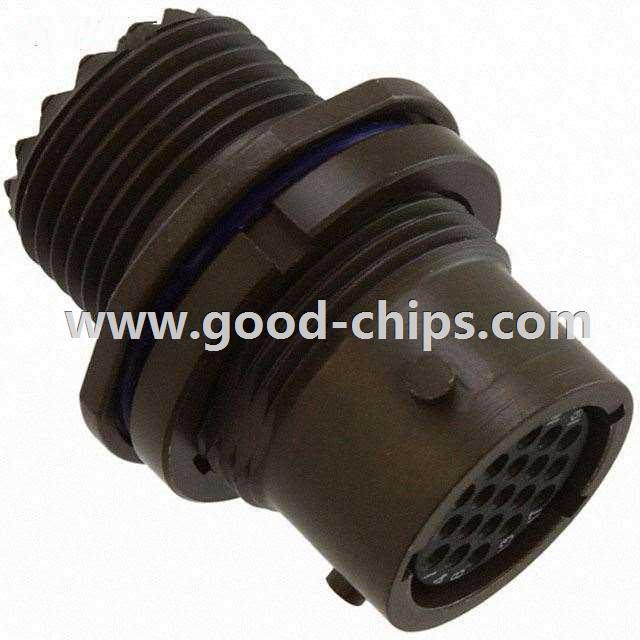

| Description: | 19 Position Circular Connector Receptacle, Female Sockets Crimp Gold |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MKJ3B7W9-19SN Datasheet |
| Internal Part Number | 898-MKJ3B7W9-19SN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MKJ (Trinity) Series | |
| Online Catalog | MIL-DTL-38999, MKJ3 | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | ITT Cannon, LLC | |
| Series | MIL-DTL-38999, MKJ3 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 19 | |
| Shell Size - Insert | 9-19 | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | |
| Termination | Crimp | |
| Fastening Type | Bayonet Lock | |
| Orientation | N (Normal) | |
| Ingress Protection | Environment Resistant | |
| Shell Material, Finish | Aluminum Alloy, Olive Drab Cadmium Plated | |
| Contact Finish | Gold | |
| Features | Shielded | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Current Rating | 5A | |
| Voltage - Rated | 500VAC | |
| Operating Temperature | -55°C ~ 150°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MKJ3B7W9-19SN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MKJ3B7W9-19SN is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of MKJ3B7W9-19SN is new and unused, you can buy MKJ3B7W9-19SN ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MKJ3B7W9-19SN.
