Manufacturer Part Number: | MKJ3A7W8-13PN |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | Circular Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

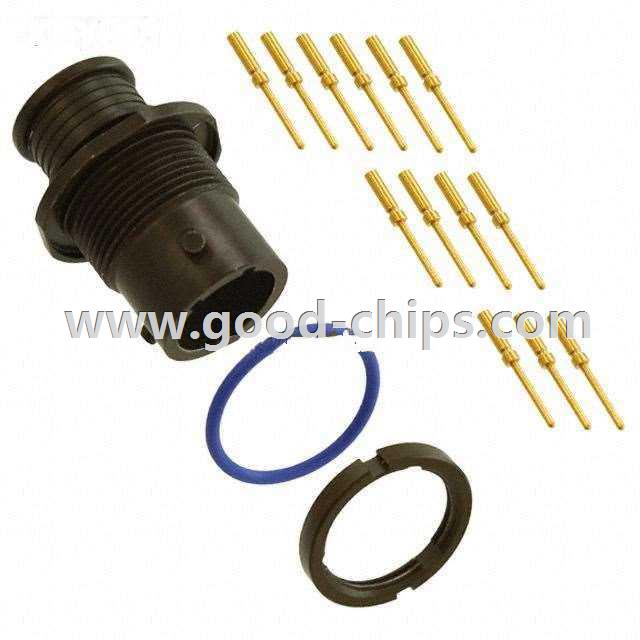

Description: | 13 Position Circular Connector Receptacle, Male Pins Crimp Gold |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MKJ3A7W8-13PN Datasheet |
Internal Part Number | 898-MKJ3A7W8-13PN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | MKJ (Trinity) Series | |
Online Catalog | MIL-DTL-38999, MKJ3 | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | ITT Cannon, LLC | |
Series | MIL-DTL-38999, MKJ3 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Male Pins | |
Number of Positions | 13 | |
Shell Size - Insert | 8-13 | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount, Bulkhead - Front Side Nut | |
Termination | Crimp | |
Fastening Type | Bayonet Lock | |
Orientation | N (Normal) | |
Ingress Protection | Environment Resistant | |
Shell Material, Finish | Aluminum Alloy, Olive Drab Cadmium Plated | |
Contact Finish | Gold | |
Features | Shielded | |
Contact Finish Thickness | 50µin (1.27µm) | |
Current Rating | 5A | |
Voltage - Rated | 500VAC | |
Operating Temperature | -55°C ~ 150°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MKJ3A7W8-13PN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MKJ3A7W8-13PN is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of MKJ3A7W8-13PN is new and unused, you can buy MKJ3A7W8-13PN ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MKJ3A7W8-13PN.
