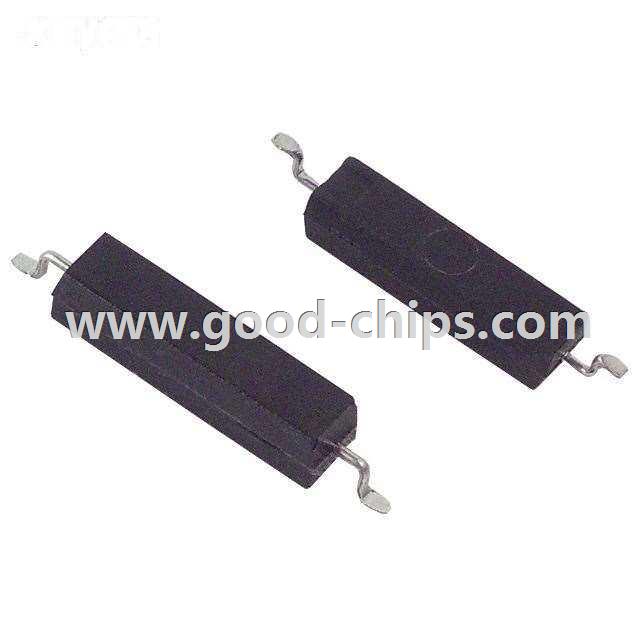

| Manufacturer Part Number: | MK17-B-2 |
|---|---|
| Manufacturer: | Standex-Meder Electronics |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 500mA (AC/DC) 170V Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MK17-B-2 Datasheet |
| Internal Part Number | 898-MK17-B-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Sensor Magnet Activation | |
| Product Training Modules | Reed Sensors vs. Hall & Electromechanical Magnetic Mapping Automotive Liquid Level Sensing | |
| Featured Product | MKxx-MMS Series Reed Sensors | |
| Online Catalog | MK15, MK16, and MK17 Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Standex-Meder Electronics | |
| Series | MK17 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded Body | |
| Circuit | SPST-NO | |
| Operate Range | 10 ~ 15AT | |
| Release Range | - | |
| Current - Switching | 500mA (AC/DC) | |
| Voltage - Switching AC | 170V | |
| Voltage - Switching DC | 170V | |
| Power - Rated | 10W | |
| Operate Time | 0.6ms | |
| Release Time | 0.05ms | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Length - Overall | 0.484" (12.30mm) | |
| Size - Body | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) | |
| Height Above Board | 0.083" (2.10mm) | |
| Operating Temperature | -40°C ~ 130°C | |
| Capacitance | 0.40pF | |
| Current - Carry | 500mA (AC/DC) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MK17-B-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MK17-B-2 is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of MK17-B-2 is new and unused, you can buy MK17-B-2 Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MK17-B-2.
