| Manufacturer Part Number: | MK11/M8-KIT |
|---|---|
| Manufacturer: | Standex-Meder Electronics |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MK11/M8-1A66B (9118266054), MK11/M8-1A66C (9118366054), MK11/M8-1A66D (9118066054) MK11/M8 Proximity, Magnetic Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MK11/M8-KIT Datasheet |
| Internal Part Number | 898-MK11/M8-KIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Reed Sensors vs. Hall & Electromechanical Magnetic Mapping Automotive Liquid Level Sensing | |
| Design Resources | Development Tool Selector | |
| Featured Product | Reed Sensor and Magnet Design Evaluation Kits | |
| Online Catalog | Reed Sensor Evaluation Kits | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Standex-Meder Electronics | |
| Series | MK11/M8 | |
| Part Status | Active | |
| Sensor Type | Proximity, Magnetic | |
| Sensing Range | 52 ~ 141 AT | |
| Interface | - | |
| Sensitivity | >1.70mT, >2.30mT, 2.70mT | |
| Voltage - Supply | - | |
| Embedded | No | |

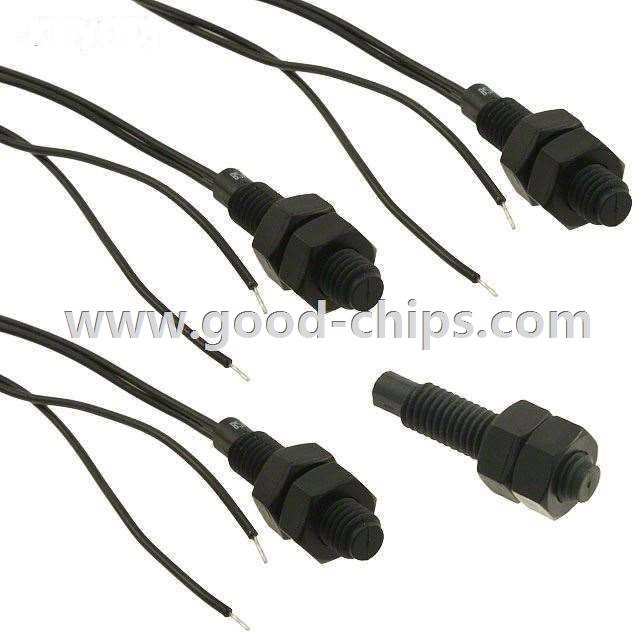

| Supplied Contents | 3 Sensors, Cable, Magnet | |
| Utilized IC / Part | MK11/M8-1A66B (9118266054), MK11/M8-1A66C (9118366054), MK11/M8-1A66D (9118066054) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MK11/M8-KIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MK11/M8-KIT is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of MK11/M8-KIT is new and unused, you can buy MK11/M8-KIT Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MK11/M8-KIT.
