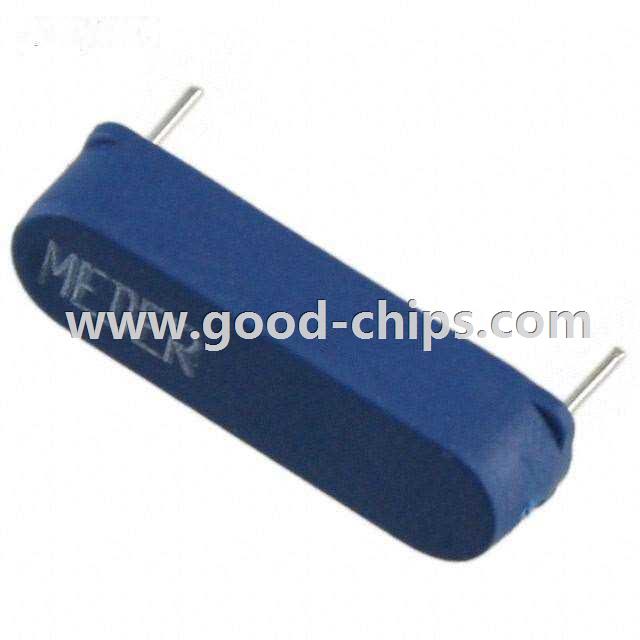

| Manufacturer Part Number: | MK06-4-C |
|---|---|
| Manufacturer: | Standex-Meder Electronics |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9313 Pieces |
| Unit Price: | Quote by Email |
| Description: | Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 500mA (AC/DC) 200V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MK06-4-C Datasheet |
| Internal Part Number | 898-MK06-4-C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Reed Sensors vs. Hall & Electromechanical Magnetic Mapping RF Reed Relays Presentation – Part 1 RF Reed Relays Presentation-Part 2 Automotive Liquid Level Sensing | |
| Featured Product | MKxx-MMS Series Reed Sensors | |
| Online Catalog | MK06 Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Standex-Meder Electronics | |
| Series | MK06 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Molded Body | |
| Circuit | SPST-NO | |
| Operate Range | 15 ~ 20AT | |
| Release Range | - | |
| Current - Switching | 500mA (AC/DC) | |
| Voltage - Switching AC | 200V | |
| Voltage - Switching DC | 200V | |
| Power - Rated | 10W | |
| Operate Time | 0.7ms | |
| Release Time | 0.05ms | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Length - Overall | 0.475" (12.06mm) | |
| Size - Body | 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm) | |
| Height Above Board | 0.130" (3.30mm) | |
| Operating Temperature | -20°C ~ 85°C | |
| Capacitance | 0.30pF | |
| Current - Carry | 1A (AC/DC) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MK06-4-C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MK06-4-C is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of MK06-4-C is new and unused, you can buy MK06-4-C Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MK06-4-C.
