| Manufacturer Part Number: | MJTP1117 |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Tactile Switches |
| Available Quantity: | 24254 Pieces |
| Unit Price: | Quote by Email |

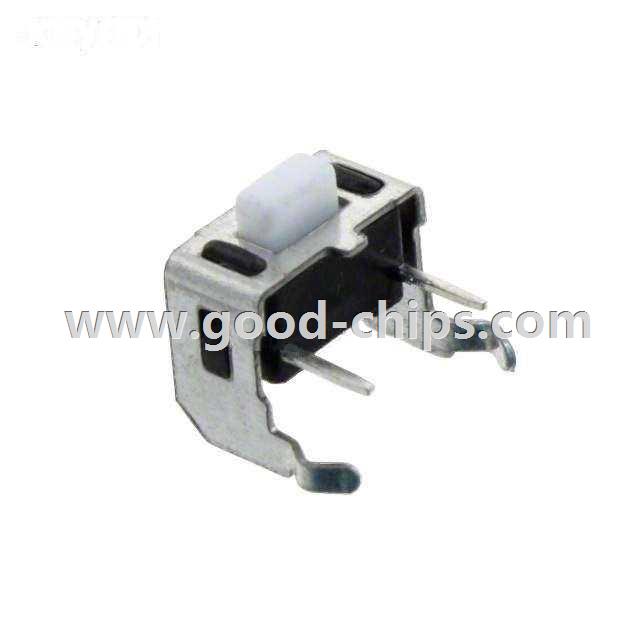

| Description: | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MJTP1117 Datasheet |
| Internal Part Number | 898-MJTP1117 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MJTP Series | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | Apem Inc. | |
| Series | MJTP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 12VDC | |
| Actuator Type | Rectangular Button | |
| Mounting Type | Through Hole, Right Angle | |
| Actuator Height off PCB, from Pins | 3.72mm | |
| Actuator Orientation | Side Actuated | |
| Termination Style | PC Pin | |
| Outline | 6.00mm x 3.50mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 180gf | |
| Ingress Protection | - | |
| Features | Tactile Feedback | |
| Actuator Material | Thermoplastic | |
| Switch Travel | 0.25mm | |
| Mechanical Life | 100,000 Cycles | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MJTP1117 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MJTP1117 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of MJTP1117 is new and unused, you can buy MJTP1117 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MJTP1117.
