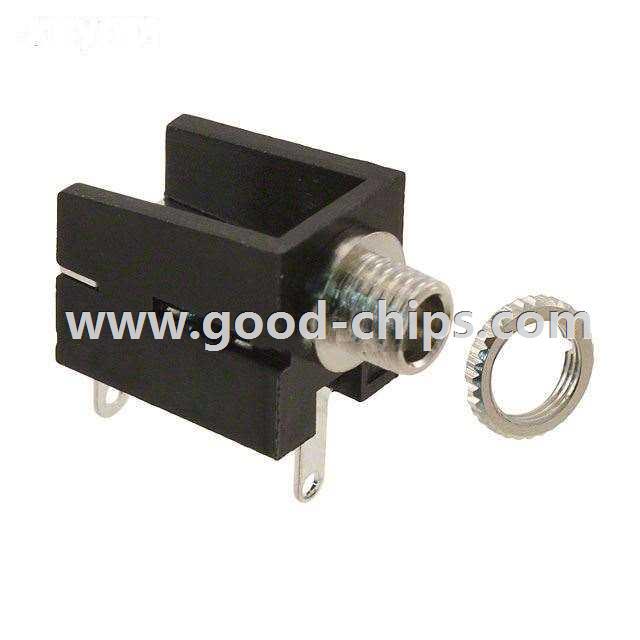

Manufacturer Part Number: | MJ-2508 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Audio Connectors |
Available Quantity: | 13805 Pieces |
Unit Price: | Quote by Email |
Description: | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder Eyelet(s) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MJ-2508 Datasheet |
Internal Part Number | 898-MJ-2508 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | MJ-2508 Cert of Compliance | |
3D Model | MJ-2508 | |
Online Catalog | CUI | |
Category | Connectors, Interconnects | |
Family | Barrel - Audio Connectors | |
Manufacturer | CUI Inc. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Phone Jack | |
Gender | Female | |
Signal Lines | Mono | |
Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | |
Actual Diameter | 0.102" (2.60mm) | |
Number of Positions/Contacts | 2 Conductors, 3 Contacts | |
Internal Switch(s) | Single Switch | |
Mounting Type | Panel Mount, Through Hole, Right Angle | |
Termination | Solder Eyelet(s) | |
Shielding | Unshielded | |
Features | Mounting Hardware, Thread Lock | |
Insulation Color | - | |
Voltage - Rated | 12VDC | |
Current Rating | 1A | |
Mating Length/Depth | - | |
Contact Material - Plating | Tin | |
Body Material | Brass | |
Body Color | Silver, Black | |
Includes | 2 pcs - 1 Connector, 1 Nut | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MJ-2508 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MJ-2508 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of MJ-2508 is new and unused, you can buy MJ-2508 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MJ-2508.
