Manufacturer Part Number: | MIKROE-324 |
---|---|
Manufacturer: | MikroElektronika |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

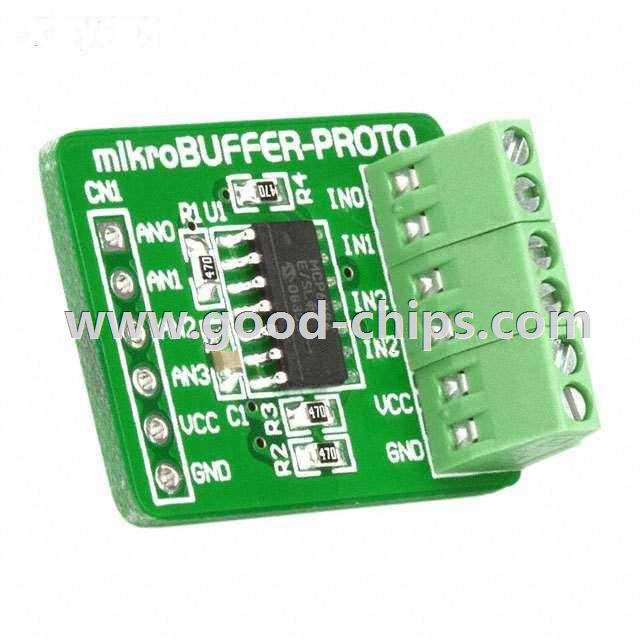

Description: | MCP6284 4 - Quad Channels per IC General Purpose Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MIKROE-324 Datasheet |
Internal Part Number | 898-MIKROE-324 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MCP6284 mikroBuffer Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | MikroElektronika | |
Series | - | |
Part Status | Active | |
Channels per IC | 4 - Quad | |
Amplifier Type | General Purpose | |
Output Type | Single-Ended | |
Slew Rate | 2.5 V/µs | |
-3db Bandwidth | - | |
Current - Output / Channel | 25mA | |
Operating Temperature | -40°C ~ 125°C | |
Current - Supply (Main IC) | 450µA | |
Voltage - Supply, Single/Dual (±) | 2.2 V ~ 6 V | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MCP6284 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MIKROE-324 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MIKROE-324 is in stock for immediate shipping now. We are the distributor of MikroElektronika all series components. The condition of MIKROE-324 is new and unused, you can buy MIKROE-324 MikroElektronika with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIKROE-324.
