Manufacturer Part Number: | MIKROE-1366 |
---|---|
Manufacturer: | MikroElektronika |
Product Category: | Evaluation Boards - Expansion Boards |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

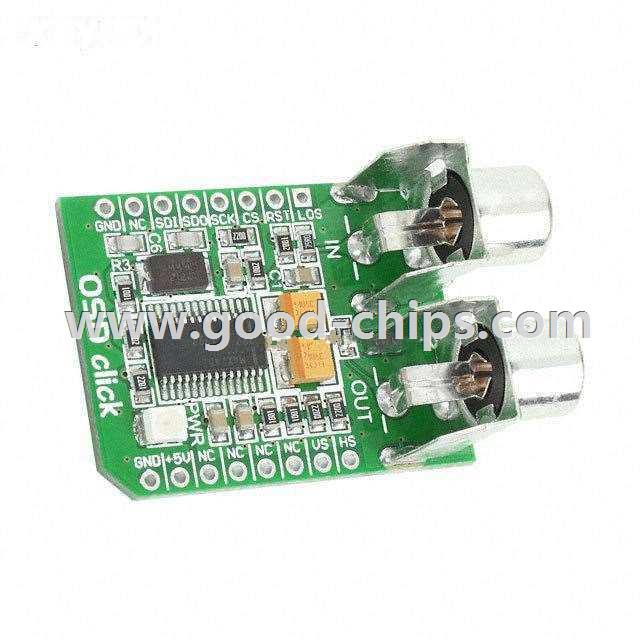

Description: | MAX7456 On-Screen Display (OSD) Display mikroBUS™ Click™ Platform Evaluation Expansion Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MIKROE-1366 Datasheet |
Internal Part Number | 898-MIKROE-1366 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | OSD click™ Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Expansion Boards | |
Manufacturer | MikroElektronika | |
Series | - | |
Part Status | Active | |
Platform | mikroBUS™ Click™ | |
Type | Display | |
Function | On-Screen Display (OSD) | |
Utilized IC / Part | MAX7456 | |
Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MIKROE-1366 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MIKROE-1366 is in stock for immediate shipping now. We are the distributor of MikroElektronika all series components. The condition of MIKROE-1366 is new and unused, you can buy MIKROE-1366 MikroElektronika with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIKROE-1366.
