| Manufacturer Part Number: | MIKROE-1159 |
|---|---|
| Manufacturer: | MikroElektronika |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |

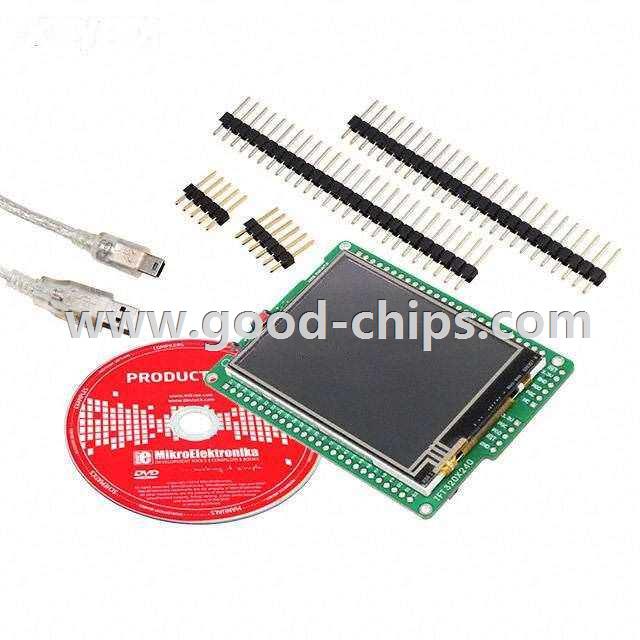

| Description: | dsPIC33EP mikromedia™ dsPIC® MCU 16-Bit dsPIC Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIKROE-1159 Datasheet |
| Internal Part Number | 898-MIKROE-1159 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Mikromedia™ for dsPIC33EP® Pinout Mikromedia™ for dsPIC33EP® Schematics Development Tool Selector | |
| Online Catalog | mikromedia™ for dsPIC33EP® Development Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | MikroElektronika | |
| Series | dsPIC® | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 16-Bit | |
| Core Processor | dsPIC | |
| Operating System | - | |
| Platform | mikromedia™ | |
| For Use With/Related Products | dsPIC33EP | |
| Mounting Type | Fixed | |
| Contents | Board(s), Cable(s), LCD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIKROE-1159 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIKROE-1159 is in stock for immediate shipping now. We are the distributor of MikroElektronika all series components. The condition of MIKROE-1159 is new and unused, you can buy MIKROE-1159 MikroElektronika with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIKROE-1159.
