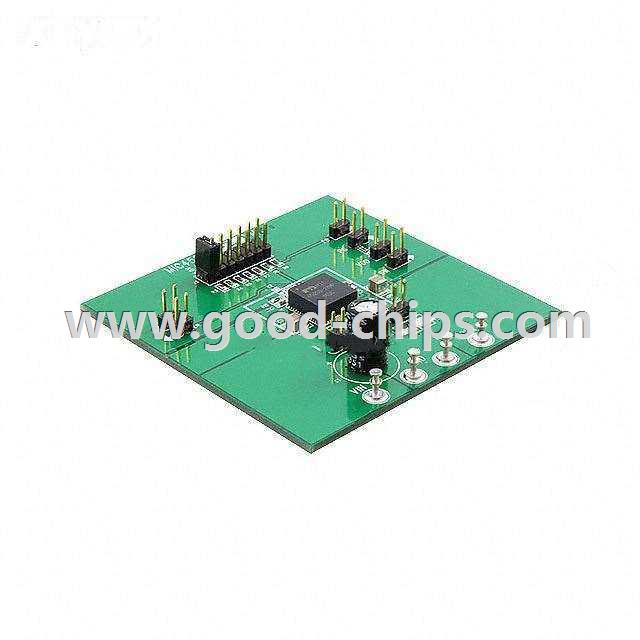

| Manufacturer Part Number: | MIC45208-2YMP-EV |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | MIC45208-2 Hyper Speed Control® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC45208-2YMP-EV Datasheet |
| Internal Part Number | 898-MIC45208-2YMP-EV | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MIC45208-1,-2 52-Lead H4QFN 10mm x 10mm Package Soldering Guidelines | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | MIC45208-2YMP EV: 5V @ 10A, 4.5 ~ 26V in, Buck | |
| Online Catalog | MIC45208 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | Hyper Speed Control® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 5V | |
| Current - Output | 10A | |
| Voltage - Input | 4.5 V ~ 26 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 600kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MIC45208-2 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC45208-2YMP-EV | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC45208-2YMP-EV is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC45208-2YMP-EV is new and unused, you can buy MIC45208-2YMP-EV Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC45208-2YMP-EV.
