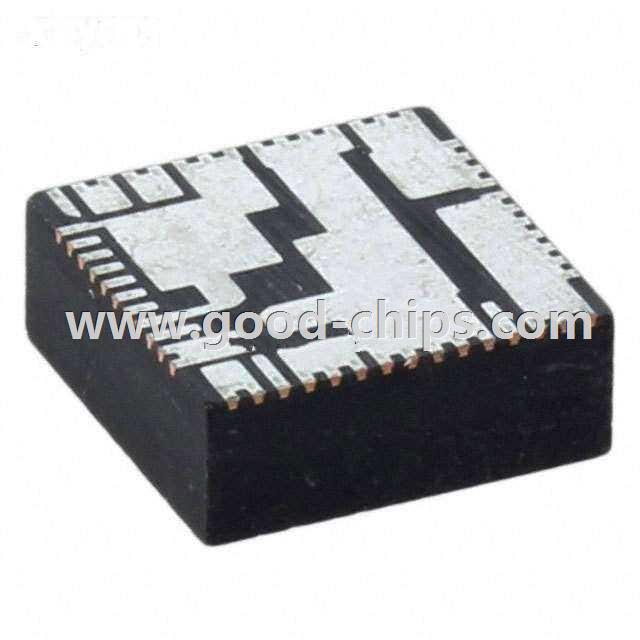

| Manufacturer Part Number: | MIC45205-2YMP-T1 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 0.8-5.5V 33W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC45205-2YMP-T1 Datasheet |
| Internal Part Number | 898-MIC45205-2YMP-T1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MIC45205-1,-2 52-Lead H4QFN 8mm x 8mm Package Soldering Guidelines | |
| Featured Product | MIC45205/45208/45212 Power Modules | |
| Reference Design Library | MIC45205-2YMP EV: 5V @ 6A, 4.5 ~ 26V in, Buck | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Online Catalog | MIC45205 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 26V | |
| Voltage - Output 1 | 0.8 ~ 5.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 6A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 52-QFN | |
| Size / Dimension | 0.31" L x 0.31" W x 0.12" H (8.0mm x 8.0mm x 3.0mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | 93% | |
| Power (Watts) - Max | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC45205-2YMP-T1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC45205-2YMP-T1 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC45205-2YMP-T1 is new and unused, you can buy MIC45205-2YMP-T1 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC45205-2YMP-T1.
