Manufacturer Part Number: | MIC33153-4YHJ-TR |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 13606 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 1.2A 14-VFDFN Exposed Pad, 14-MLF® |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MIC33153-4YHJ-TR Datasheet |
Internal Part Number | 898-MIC33153-4YHJ-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Reference Design Library | MIC33153YHJ EV: 1.8V @ 1.2A, 2.7 ~ 5.5V in, Buck | |
PCN Assembly/Origin | Wafer Size Update 02/Sep/2015 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Microchip Technology | |
Series | HyperLight Load® | |
Packaging | Cut Tape (CT) | |
Part Status | Discontinued | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Fixed | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 2.7V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 1.2V | |
Voltage - Output (Max) | - | |
Current - Output | 1.2A | |
Frequency - Switching | 4MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

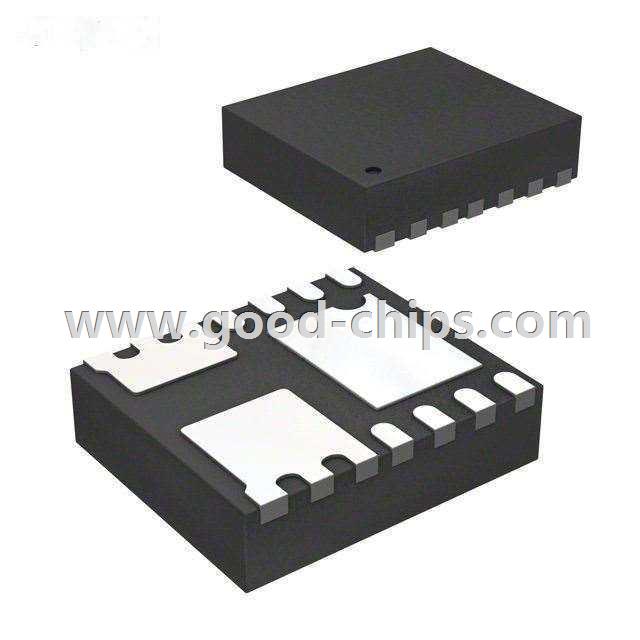

Package / Case | 14-VFDFN Exposed Pad, 14-MLF® | |
Supplier Device Package | 14-MLF® (3x3.5) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MIC33153-4YHJ-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MIC33153-4YHJ-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC33153-4YHJ-TR is new and unused, you can buy MIC33153-4YHJ-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC33153-4YHJ-TR.
