| Manufacturer Part Number: | MIC29152WD-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 11510 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 25 V 1.5A TO-252-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC29152WD-TR Datasheet |
| Internal Part Number | 898-MIC29152WD-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Improving Adjustable Regulator Accuracy Simple Current-Limiting Power Supply | |
| PCN Assembly/Origin | Qualification Production Site 23/May/2014 Wafer Size Update 02/Sep/2015 Qualification of Fabrication Site 14/Apr/2016 | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Online Catalog | > 20V(Max) | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Adjustable | |
| Voltage - Output | 1.25 V ~ 25 V | |
| Current - Output | 1.5A | |
| Voltage - Dropout (Typical) | 0.35V @ 1.5A | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 26V | |
| Current - Limit (Min) | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

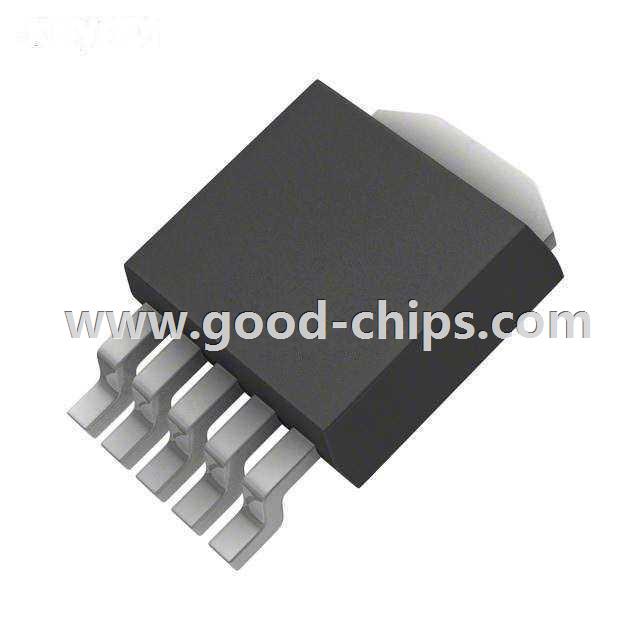

| Package / Case | TO-252-6, DPak (5 Leads + Tab) | |
| Supplier Device Package | TO-252-5 | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC29152WD-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC29152WD-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC29152WD-TR is new and unused, you can buy MIC29152WD-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC29152WD-TR.
