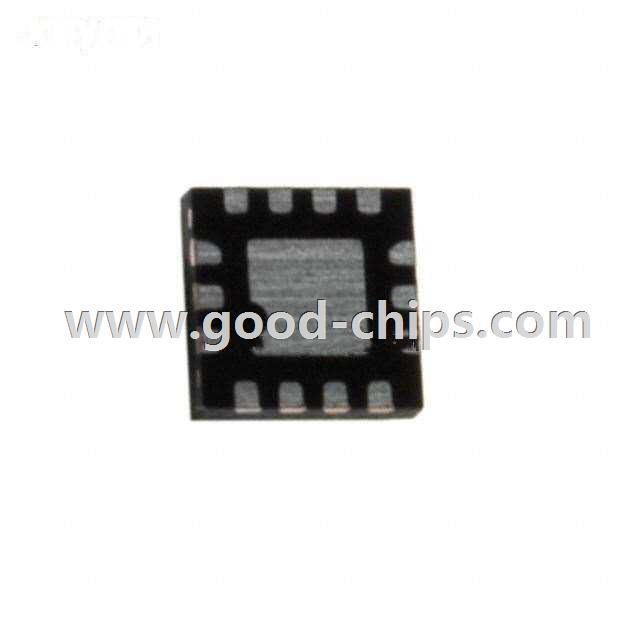

| Manufacturer Part Number: | MIC2845A-SCYMT-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 6 Output Linear PWM Dimming 20mA 14-TMLF® (2.5x2.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC2845A-SCYMT-TR Datasheet |
| Internal Part Number | 898-MIC2845A-SCYMT-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | EOL 10/Dec/2015 | |
| PCN Assembly/Origin | Wafer Size Update 02/Sep/2015 | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 6 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | - | |
| Current - Output / Channel | 20mA | |
| Frequency | - | |
| Dimming | PWM | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-UFQFN Exposed Pad, 14-TMLF® | |
| Supplier Device Package | 14-TMLF® (2.5x2.5) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC2845A-SCYMT-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC2845A-SCYMT-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC2845A-SCYMT-TR is new and unused, you can buy MIC2845A-SCYMT-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC2845A-SCYMT-TR.
