| Manufacturer Part Number: | MIC24056YJL-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9086 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 12A 28-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC24056YJL-TR Datasheet |
| Internal Part Number | 898-MIC24056YJL-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | How to Power GSM/GPRS/EDGE/3G/HSPA M2M Modems | |
| PCN Assembly/Origin | Wafer Size Update 02/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Microchip Technology | |
| Series | Hyper Speed Control®, SuperSwitcher II™ | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 19V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 12A | |
| Frequency - Switching | 600kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

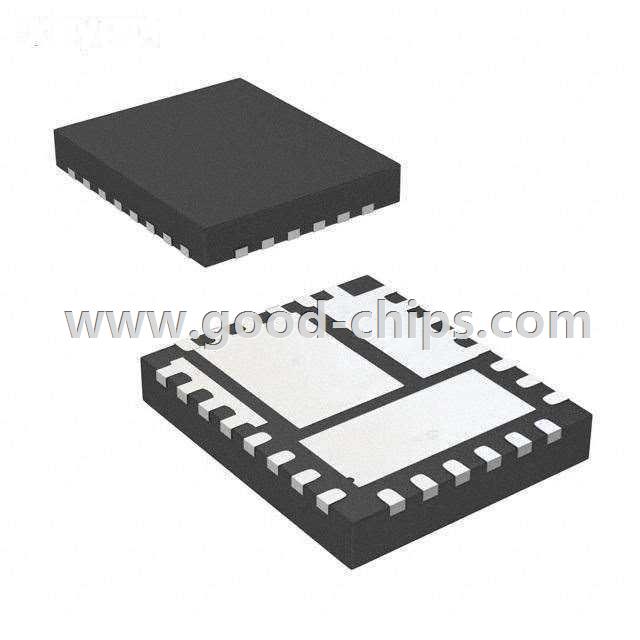

| Package / Case | 28-VFQFN Exposed Pad | |
| Supplier Device Package | 28-QFN (5x6) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC24056YJL-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC24056YJL-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC24056YJL-TR is new and unused, you can buy MIC24056YJL-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC24056YJL-TR.
